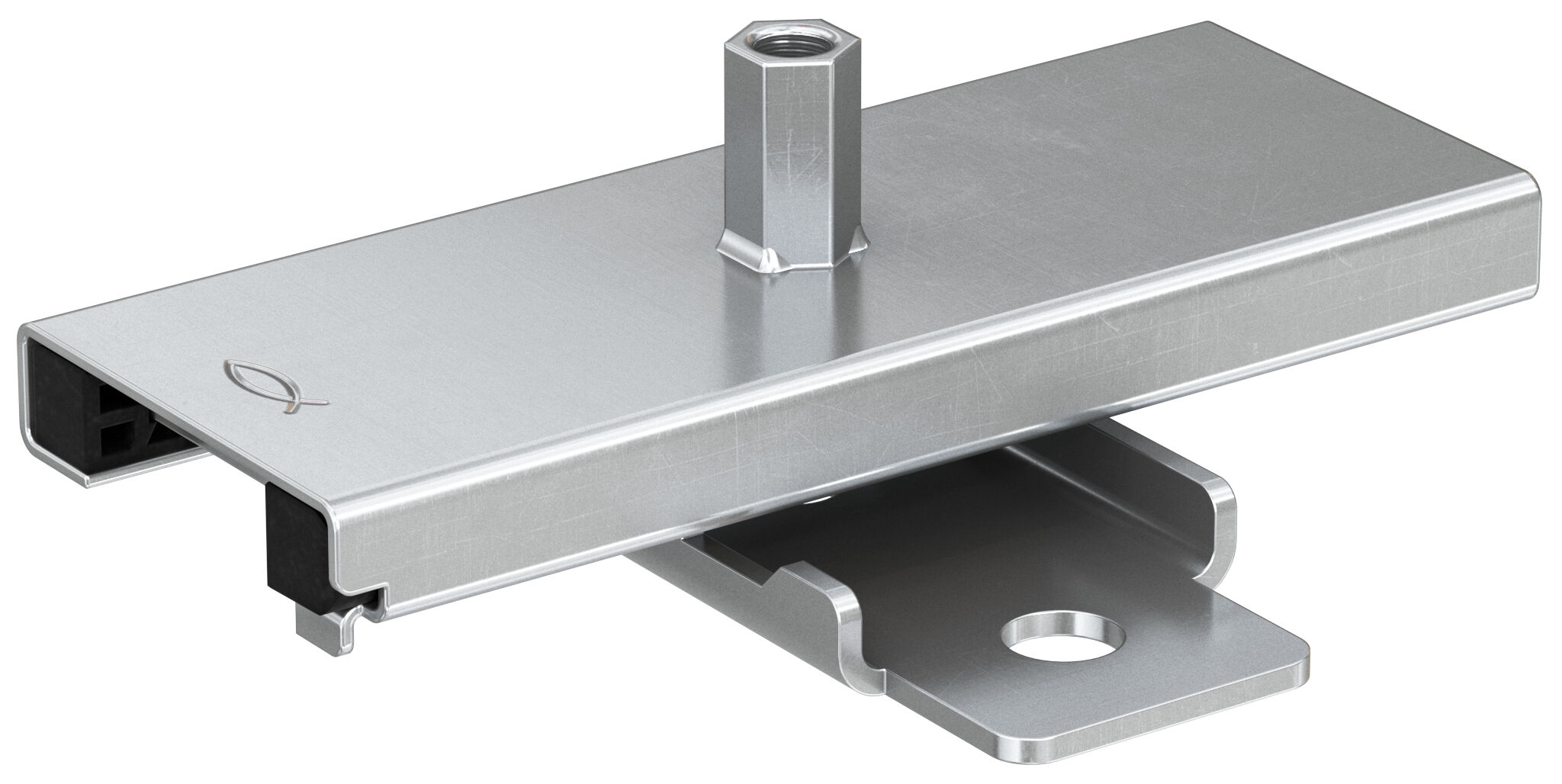

fischer Axial Slider light FASL1 M8/10

Top Features

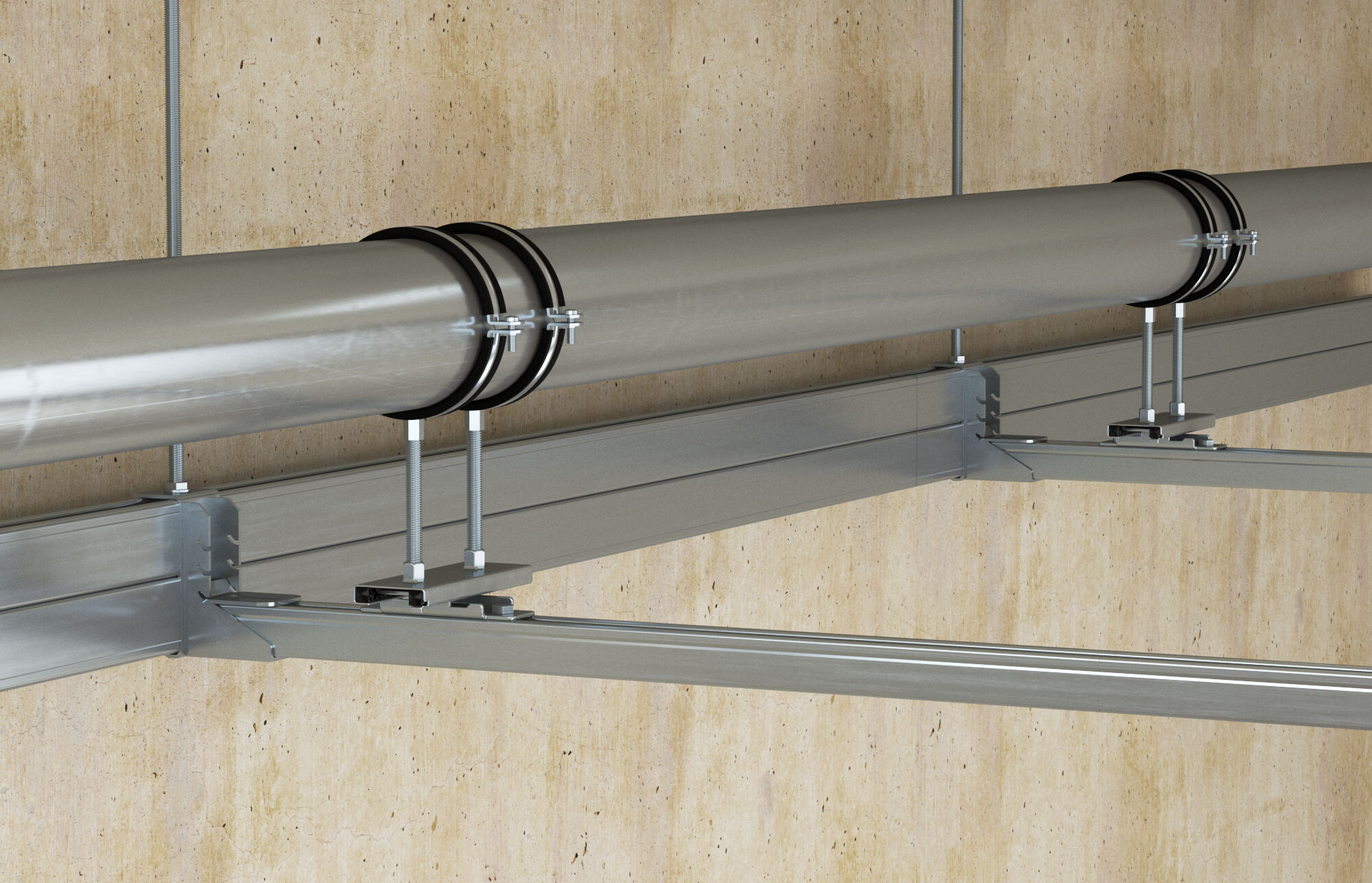

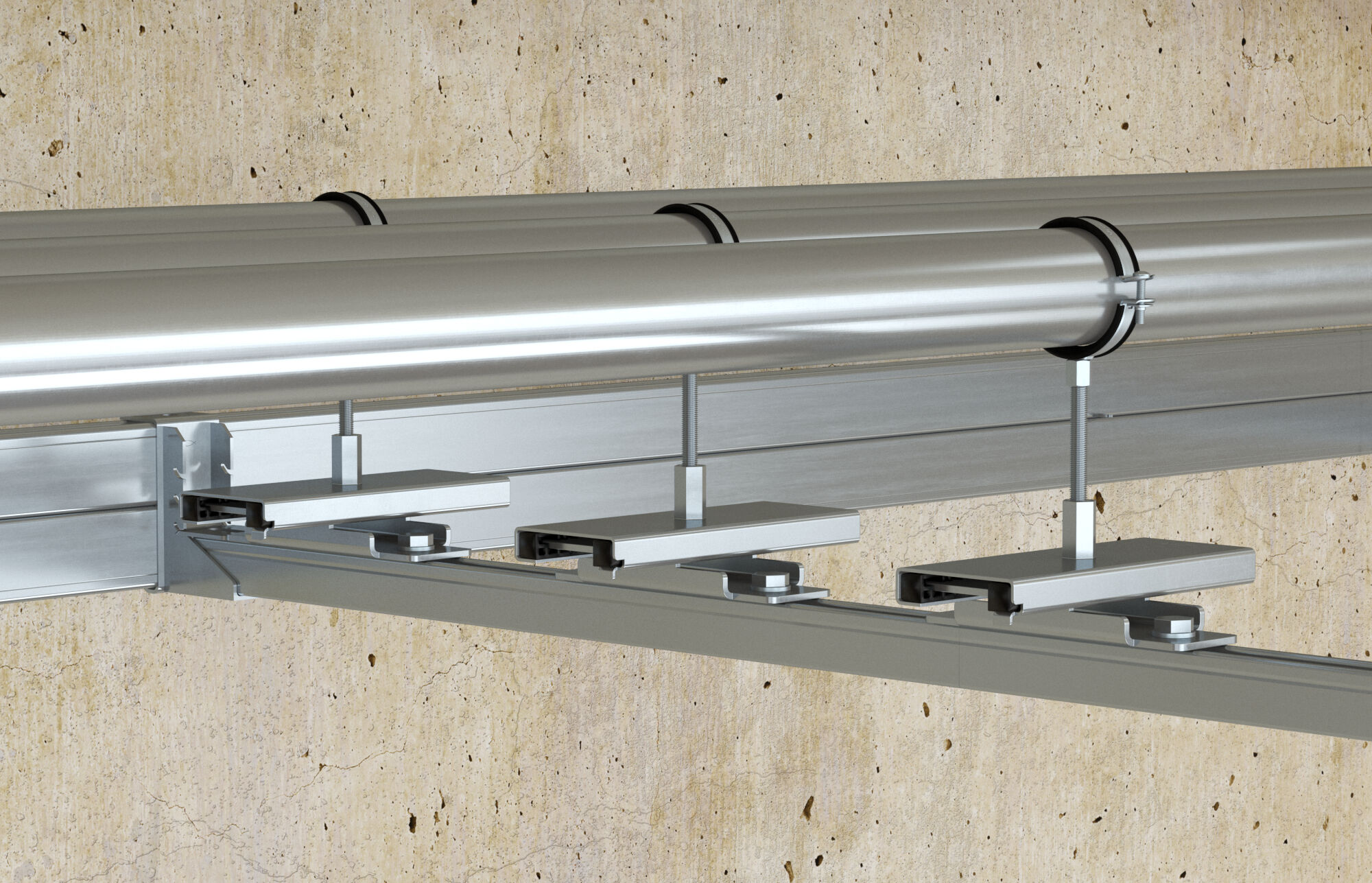

Application as upright or hanging slider.
Sliding path of 100 or 120 mm possible.
Compatible with the FLS and FUS channel systems.

The light axial slider with single or double mount and single or combination connection thread

Advantages

The FASL can be used flexibly, thanks to the application options as a standing or hanging slider and as a guide bearing on vertical pipelines.
The low sliding friction of the plastic sliding rails enables optimum force application at the fixed point.
The large sliding path and the long slide rails allow large expansions to be accommodated without any problems.
The base plate of the FASL is compatible with the FLS and FUS channel systems and allows fixing with one or two screws.
The flexible combination thread allows the use of pipe clamps of various sizes.

The FASL Axial Slider is used for absorbing pipe expansions and is recommended for light pipes up to DN100. The FASL has a maximum sliding range of 100 mm / 120 mm and a maximum load capacity of 1,5 kN. fischer offers the FASL with a metric combination thread M8/M10 and with a single thread M10. The FASL can be used for upright or suspended mounting. The galvanized version is suitable for installations in buildings.

Properties

Material: Steel
Zinc plating: galvanised steel
Sliding strip material: glass fiber reinforced polyamide
Thermal capacity: -30 °C to +130 °C

Thread ( A )	M8 / M10
Length ( L )	160 mm
Width ( B )	140 mm
Height ( H )	56 mm
Max. recommended static load (suspended) ( N_rec )	1,2 kN
Max. recommended static load (upright) ( N_rec )	1,2 kN
Max. sliding distance	100 mm
Amount	10 pcs.
GTIN (EAN-Code)	4048962482751
