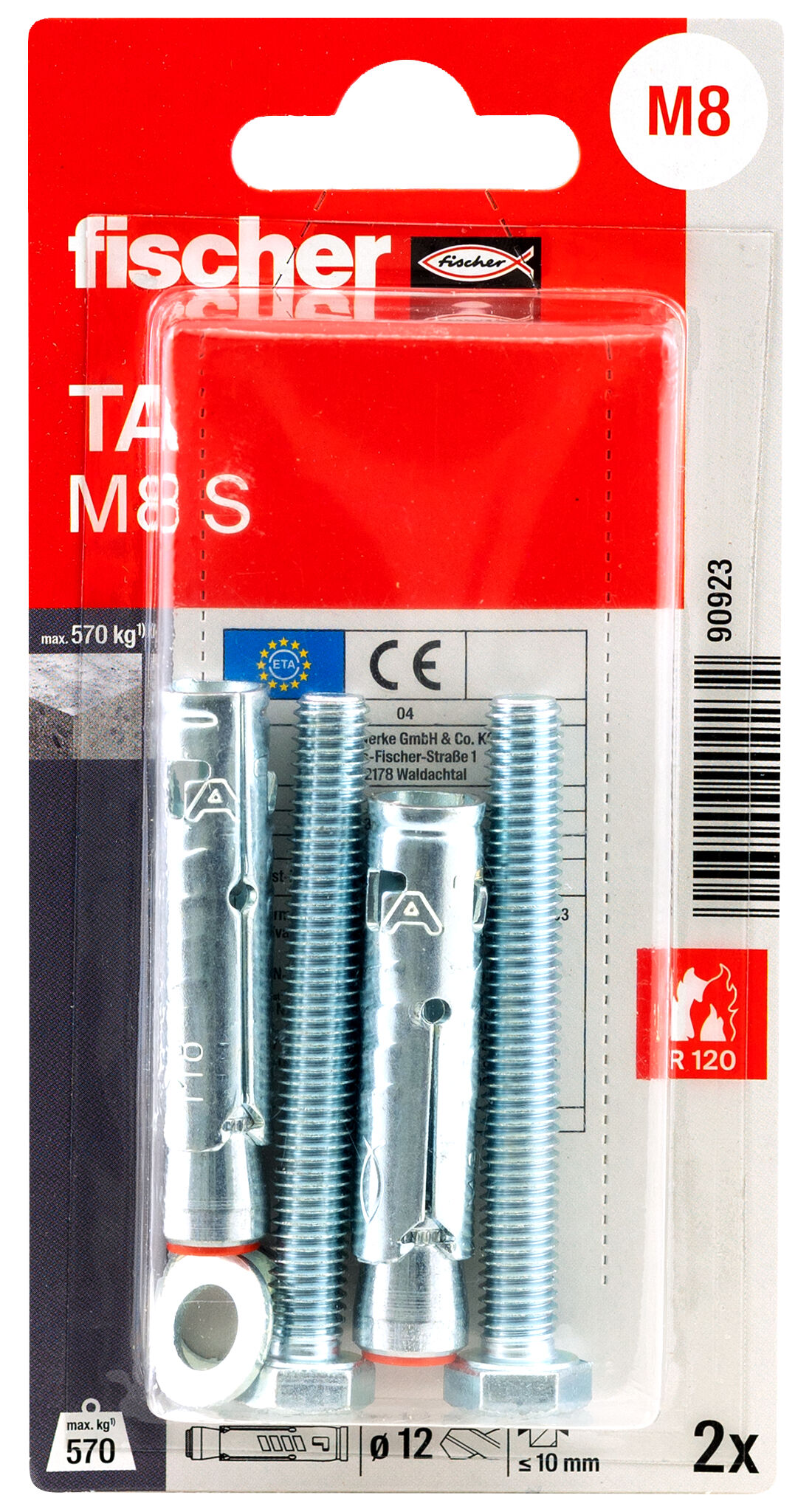

fischer Heavy-duty anchor TA M8 S/10 K NV

Top Features

Simple assembly due to low setting energy.
Low axial and edge distances due to uniform load introduction.
Surface flush installation due to detachable screw connections.
ETA approval for non-cracked concrete.

The installation-friendly internal thread anchor with screw for fixings in non-cracked concrete.

Advantages

The optimised geometry minimises setting energy and allows for use in extremely narrow spaces. This allows for user-friendly installation.
The three-part expansion sleeve creates even load distribution, thus allowing small edge and axial spacing. Thus the TA M is extremely flexible.
The metric internal thread allows to use standard screws or threaded rods for the ideal adaptation to suit the intended use.
The red plastic cap protects against soiling and thus ensures free-running of the thread.

The fischer heavy-duty anchor TA M-S is an internal threaded anchor for pre-positioned installation made of zinc-plated steel. During installation the cone is pulled into the expansion sleeve and expands it against the hole wall. The plastic cover protects the thread from dirt. This ensures that it remains functional. The heavy-duty anchor is ideal for fixing fall protection devices, systems, and machines in non-cracked concrete.

Applications

Steel constructions
Handrails
Consoles
Ladders
Cable trays
Machines
Staircases
Gates
Façades
Stand-off installations

Building materials

Approved for:

Concrete C20/25 to C50/60, non-cracked

Also suitable for:

Concrete C12/15
Natural stone with dense structure

Es gelten die Details (Baustoffe, Lasten, etc.) der ggf. verfügbaren Zulassung. Weitere Dokumente finden Sie im Download Center.

Zulassungen

ETA-04/0003
DoP No. 0263

ETA-approval
Drill diameter ( d₀ )	12 mm
Width across nut	13 mm
Washer (outer diameter x thickness)	16 x 1.6 mm
Contents	2 x Heavy-duty anchor TA M8 S/10 2 x Hexagon head screw M8 x 65
Packaging	Blister card
Amount	2 pcs.
GTIN (EAN-Code)	4006209909232
