Art. nr. 522835

GTIN (EAN-Code): 4048962181876

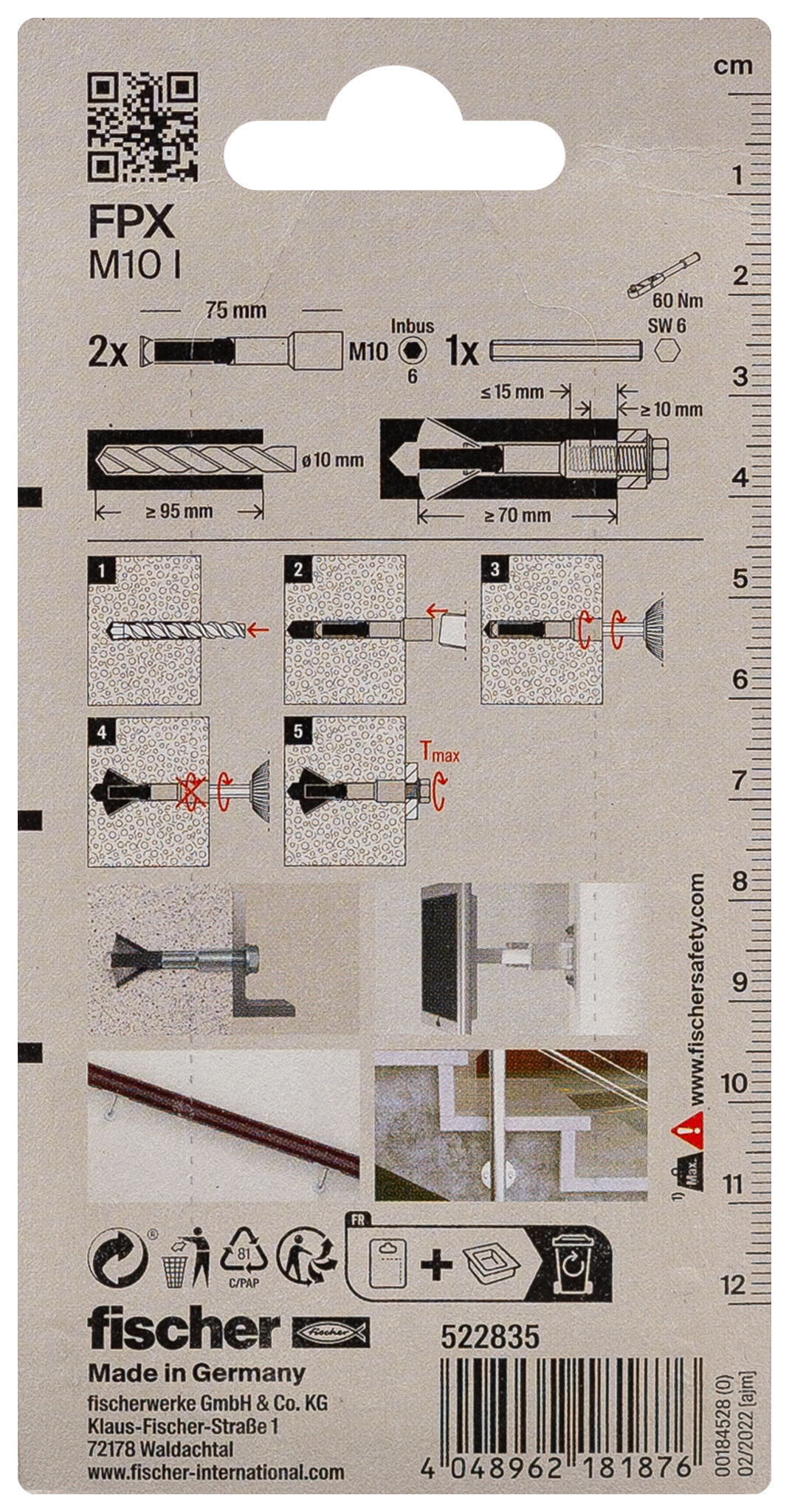

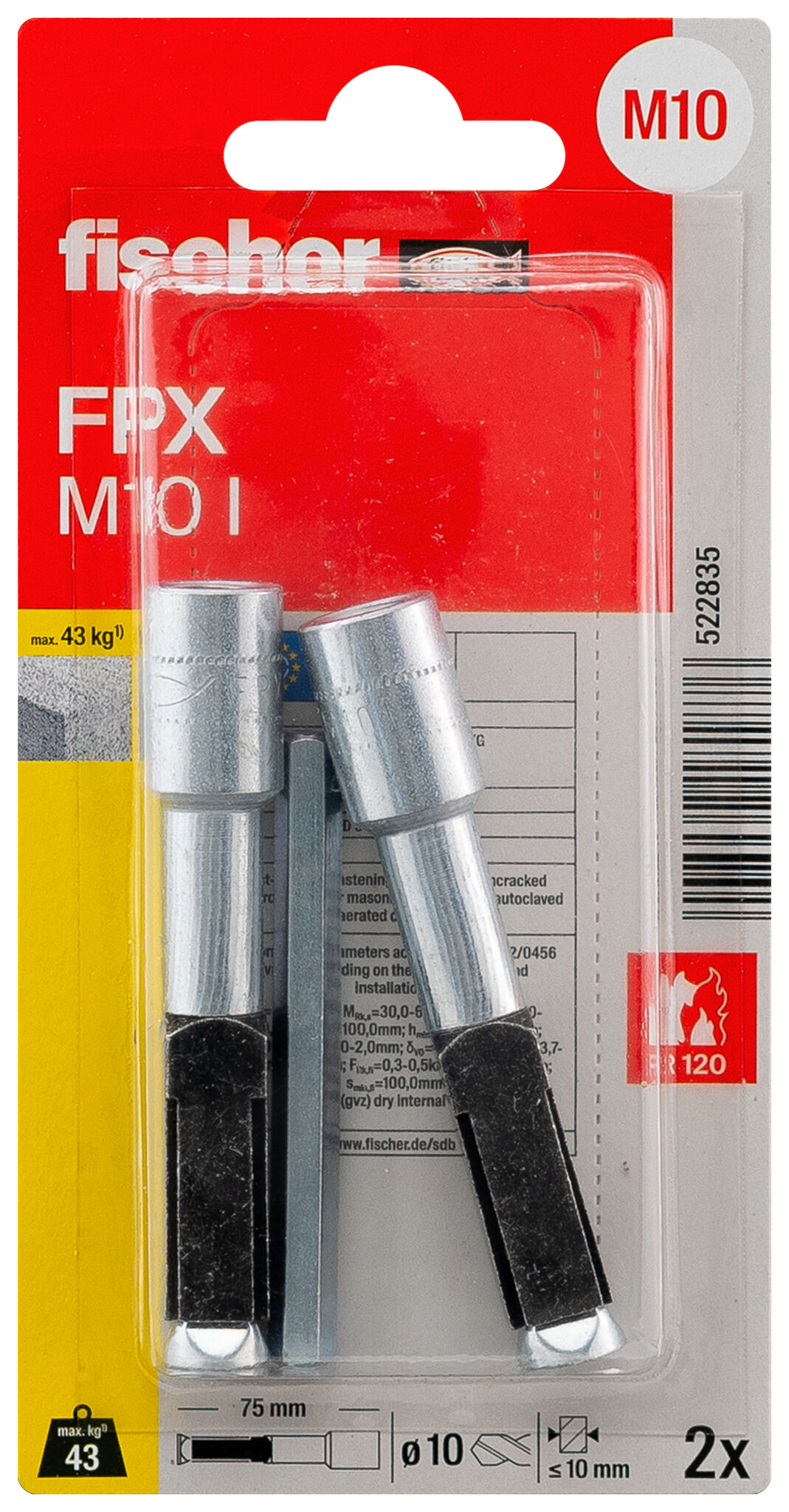

fischer Aircrete anchor FPX-I M10 SB-card

Top Features

The first approved metal anchor for aerated concrete.
High load capacity: Expanding wings create undercut. This saves on fixing points.
Simple and power-saving installation without an additional setting tool.
No rotation of the anchor.
Automatic setting control ensures maximum safety.

The strong internal thread anchor with unique four-way expansion for fixings in aerated concrete.

Advantages

The FPX-I enables easy tightening via the hexagon wrench using a cordless screwdriver or ratchet and therefore offers top installation comfort.
The deformation-controlled expansion of the anchor with the hexagon wrench ensures safe, even and gentle installation.
The unique 4-way expansion of the FPX-I with a square expansion sleeve prevents the rotation of the anchor in the drill hole and ensures high tension and shear loads, which means fewer fixing points.
The releasing of the hexagonal wrench guarantees an automatical setting control for each installation process.
The first steel anchor with an ETA-Approval and fire protection certificate for fixings in aerated concrete enables use for safety-relevant fixings, too.

The fischer Aircrete anchor FPX-I is made of zinc-plated steel. After pre-drilling, the FPX-I is only driven in with the hammer. It is not necessary to clean the drill hole. The fischer Aircrete anchor is applied with a hex driver via a cordless screwdriver or via a ratchet. The cone is then pulled into the expansion sleeve. In this case the four wings create an undercut in the drill hole. After expansion, the hex socket is automatically released. The fischer Aircrete anchor FPX-I is ideally suited for fixing suspended ceilings, railings or kitchen cabinets in aerated concrete.

Applications

Suspended ceilings
Cable trays
Pipelines
Ventilation ducts
Guard rails/hand rails
TV consoles
Kitchen cupboards
Stand-off installations

Building materials

Approved for:

Aerated concrete with compressive strength 2 to 7 N/mm²
Aerated concrete wall or ceiling boards with compressive strength 3.3 to 4.4 N/mm²
Planked aerated concrete masonry, e.g. plastered, tiled, papered etc.

De details (bouwmaterialen, belastingen, etc.) van de beschikbare goedkeuring zijn van toepassing.

Certificering

ETA-12/0456
DoP No. 0270

Functionality

The FPX-I with internal thread is suitable for pre-positioned installation.
Pre-drilling enables easy hammering in, even in high-strength aerated concrete. There is no need to clean the drill hole.
When the anchor is tightened with the hexagon wrench, the internal thread sleeve starts to rotate and the cone is pulled into the square expansion sleeve. The aerated concrete is compressed on the four sides and generates an undercut in the drill hole.
When reached the optimum expansion, the hexagon wrench is released automatically from the anchor.

Mounting Strip 1 Picture

1 / 5

pdf, ETA-12/0456

European Technical Assessment for fischer aircrete anchor FPX-I - Metal expansion fastener for use in autoclaved aerated concrete

Gecreëerd op 19/07/2019

pdf, DoP No. 0270

Declaration of Performance for fischer Aircrete Anchor FPX-I (Metal expansion fastener for use in autoclaved aerated concrete)

Gecreëerd op 15/01/2021

Aircrete anchor FPX-I - Permissible loads and required component dimensions in cracked and non-cracked aerated concrete wall and slab plates.

Aircrete anchor FPX-I - Permissible loads and required component dimensions in aerated concrete masonry.

ETA-approval
Drill diameter ( d₀ )	10 mm
Min. bolt penetration ( l_E,min )	10 mm
Max. bolt penetration ( l_E,max )	15 mm
Effect. anchorage depth ( h_ef )	70 mm
Min. drill hole depth ( h₁ )	95 mm
Contents	2 x FPX M10 I, 1 x setting tool
Packaging	Blister card
Amount	2 pcs.
GTIN (EAN-Code)	4048962181876

fischer Aircrete anchor FPX-I M10 SB-card
