Simple to assemble: The edge of the plug prevents it from falling deeper into the drill hole.
No expansion pressure on the plug neck. This means that tiles or plaster are not damaged.
Optimum force transmission due to four-way expansion. This allows for high holding values in solid and hollow building materials.
The advantages / Product description

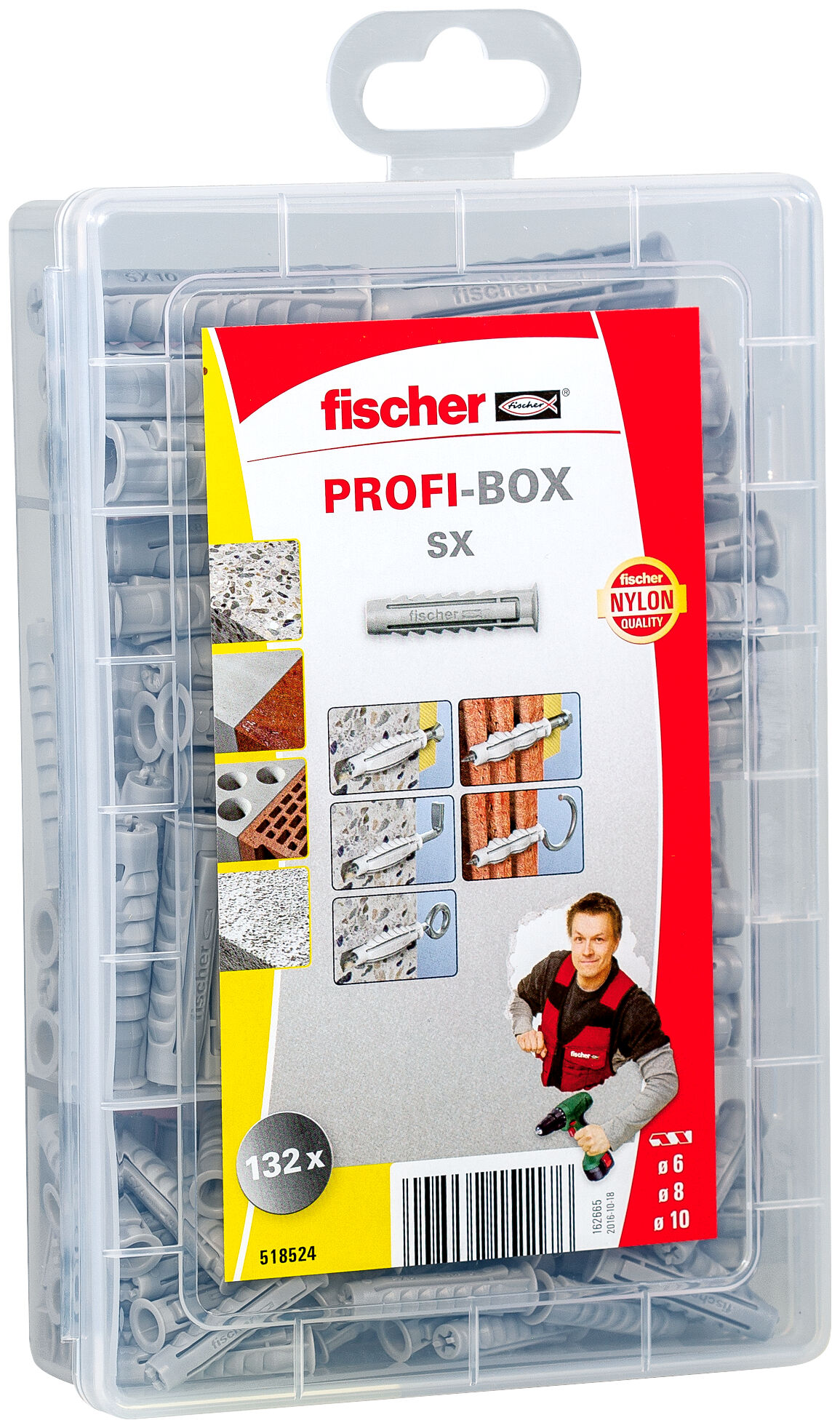

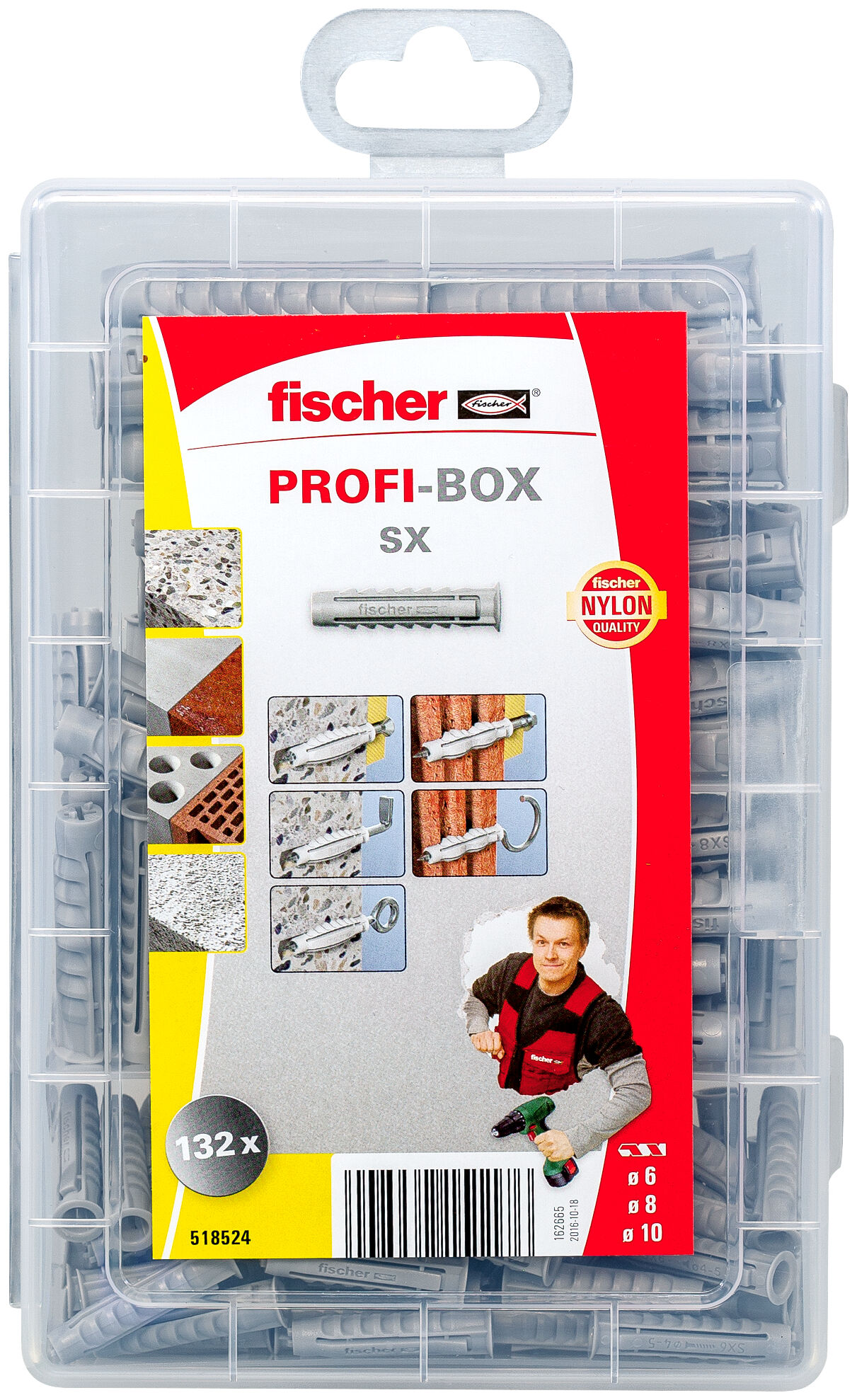

The practical fischer box with fischer expansion plugs SX Plus.
Advantages
The 4-way expansion ensures optimum force transmission into the building material and guarantees high holding values in solid and perforated building materials.
The special fixing wings ensure pre-fixation of the screw, leaving both of the user's hands free during the setting process.
The expansion-free plug neck prevents the creation of expansion forces on the material surface whilst screwing in the screw. This helps to prevent damage to tiles and plaster.
The special shape of the plug makes it easy to insert into the drill hole with just a few hammer blows.
The pronounced edge of the plug prevents it from slipping deeper into the drill hole and enables secure installation.
Due to the noticeable tightening torque, the user automatically recognizes when the screw is properly installed and thus prevents overtightening of the screw.

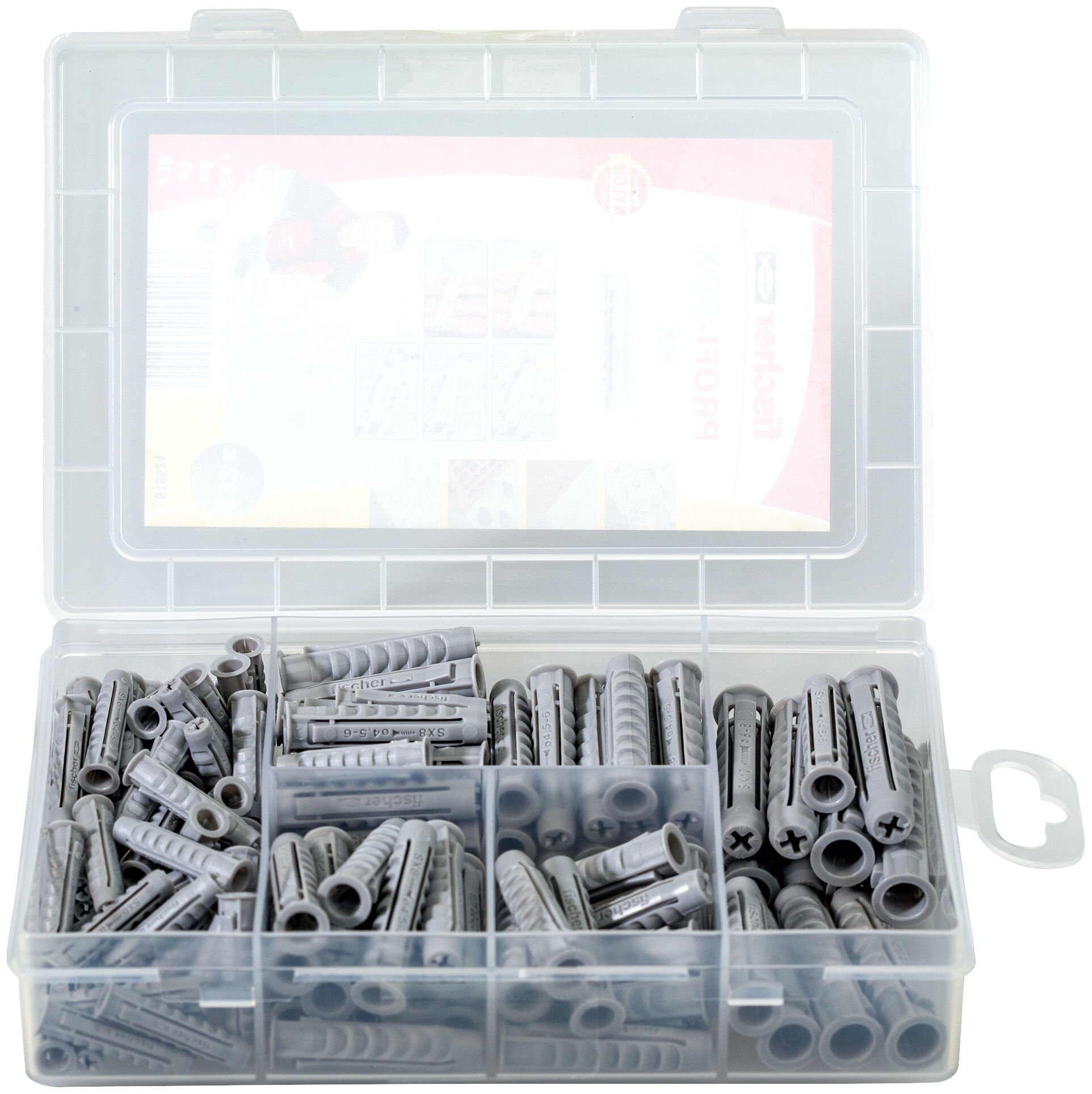

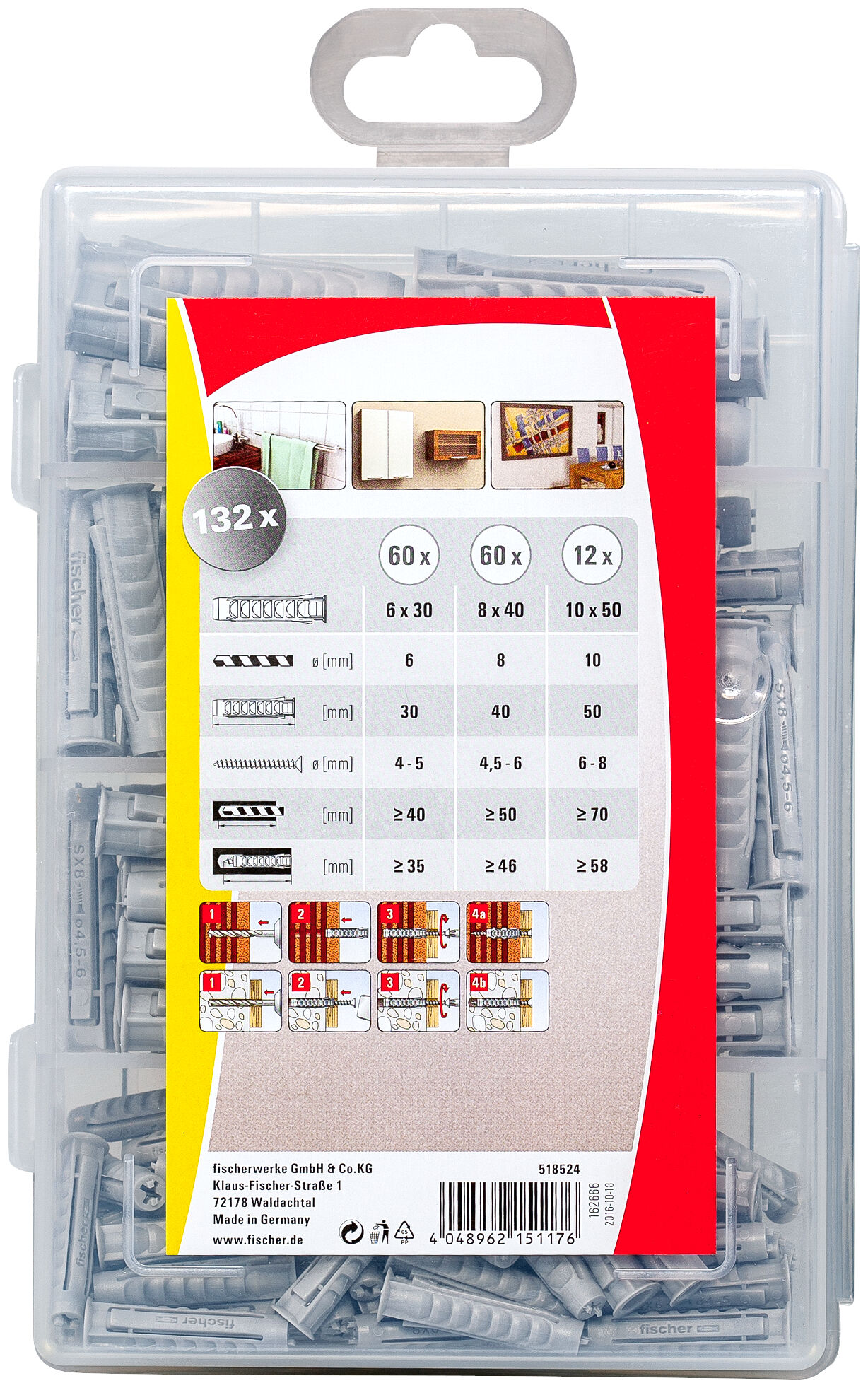

The fischer PROFI-BOX with SX plugs contains, pre-sorted, 60 expansion plugs SX 6 x 30, 60 expansion plugs SX 8 x 40, and 12 expansion plugs SX 10 x 50. The PROFI-BOX is made from high-quality, impact-resistant plastic and is ideal for workshops and construction sites. The transparent lid gives an overview of the contents at a glance. The fischer PROFI-BOX for SX plugs can be securely closed and can also be refilled.
Application and approval
Applications
Lamps
Wardrobes
Motion detectors
Skirting boards
Light wall shelves
Mirror cabinets
Mailboxes
TV consoles
Trellis
Folding shutters
Fire detector
Building materials
Concrete
Solid brick
Solid sand-lime brick
Aerated concrete
Vertically perforated brick
Perforated sand-lime brick
Solid stone of leightweight concrete
Hollow block of leightweight concrete
Natural stone
Hollow brick & concrete ceilings
Solid gypsum boards
You can find detailed information on building materials in the registration document.
Assembly instruction
Functionality
The SX Plus is suitable for pre-positioned and push-through installation.
When the plug is inserted, the fixing wings fold inwards. This locks the screw in place when it is inserted into the plug and prevents it from falling out, which is particularly helpful in overhead applications.
When the screw is tightened, the SX Plus expands in four directions and thus anchors itself securely in the building material.
The anti-rotation lock prevents the plug from twisting and allows for easy installation.
Suitable for wood and chipboard screws, as well as stud screws.
The required screw length is given by the plug length + fixture thickness + the screw diameter.
Technical data
Contents
International version: 60 x Expansion plug SX 6 x 30 60 x Expansion plug SX 8 x 40 12 x Expansion plug SX 10 x 50
