fischer Universal plug UX 12 x 70 S with screw

Top Features

Plug holds in all building materials.
Plug expands in solid building materials.
Knots in perforated brick and behind gypsum plasterboard.
The screw fits the anchor perfectly.

The universal nylon plugwith screw for all building materials.

Advantages

The universal operating principle (knotting or expanding) allows for use in all solid, hollow and board building materials. Thus the UX is the correct choice for unknown base materials.
The UX's angled connection ridges allow for optimum screw guidance. Serrated anti-rotation locks prevent rotation in the drill hole. This guarantees the greatest possible installation safety.
Fixing sets with screws provide the right solution for all applications.

The fischer universal fixing UX is a plastic fixing made of high-quality nylon. The fischer universal fixing expands in solid building materials and knots in hollow building materials for maximum hold. For this reason the fischer UX is always the correct choice - even with unknown building materials. The fischer universal fixing UX without an edge is suitable for through-type installation.

Applications

Lighting
Light cabinets
Towel rails
Mirror cabinets
TV consoles

Building materials

Concrete
Vertically perforated brick
Hollow blocks made from lightweight concrete
Cavity floor slabs made from bricks and concrete
Perforated sand-lime brick
Solid sand-lime brick
Natural stone
Aerated concrete
Chipboard
Solid panel made from gypsum
Solid brick made from lightweight concrete
Solid brick

You can find detailed information on building materials in the registration document.

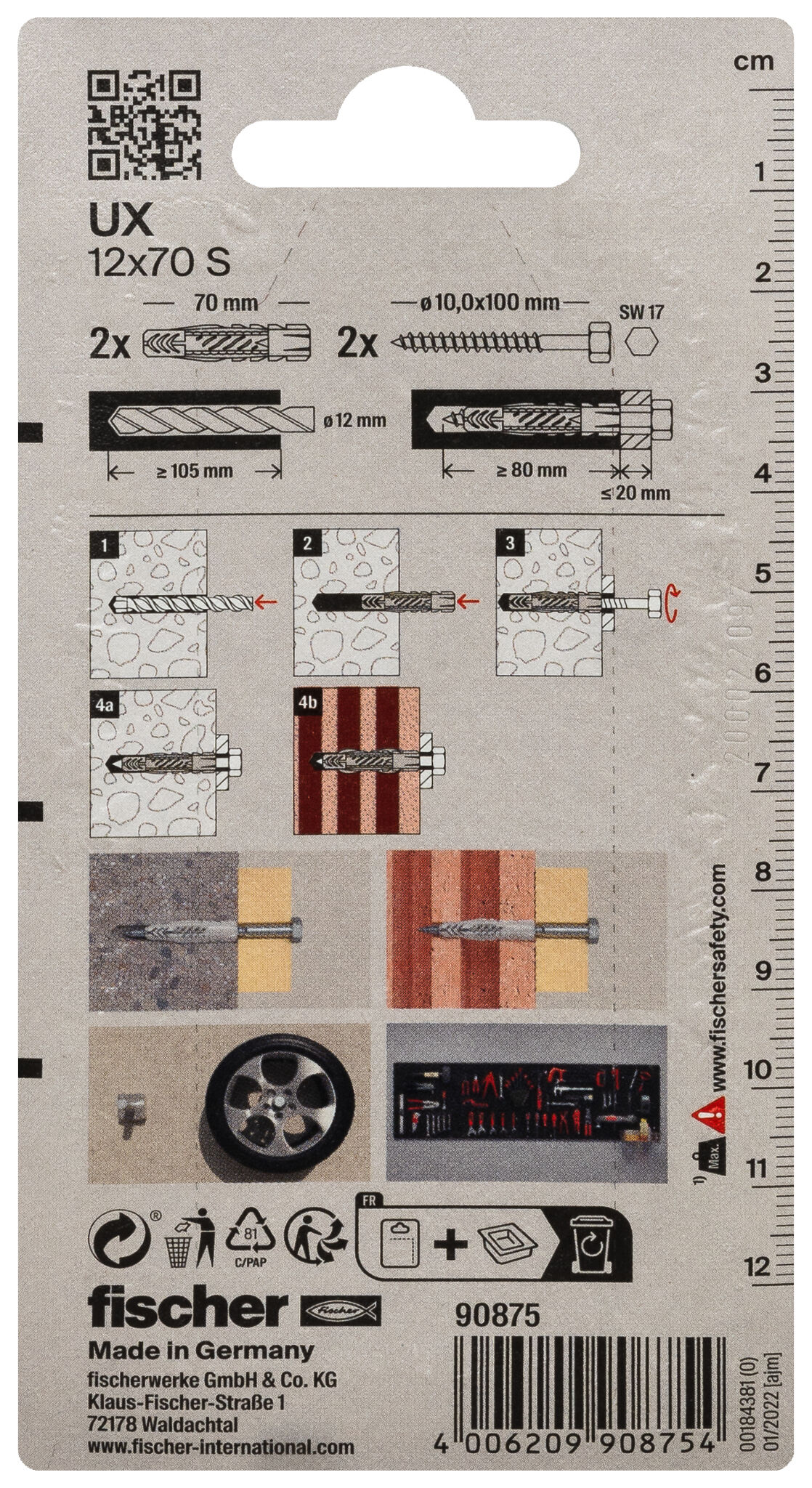

Functionality

The UX without rim is suitable for push-through installation, the UX with rim for pre-positioned installation.
Turning in the screw causes the UX to expand in the solid building material and to knot within the cavity.
The required screw length is given by the plug length + fixture thickness + 1 x screw diameter.
Suitable for wood and chipboard screws, as well as stud screws.
In the case of board building materials, the threadless part of the screw must not be longer than the fixture, and the UX with rim is to be used.
The edge distance must be at least one plug length.

Mounting Strip 1 Picture

1 / 6

Drill diameter ( d₀ )	12 mm
Min. drill hole depth ( h₁ )	100 mm
Anchor length ( l )	70 mm
Wood and chipboard screws ( d_s )	10.0 x 100 mm

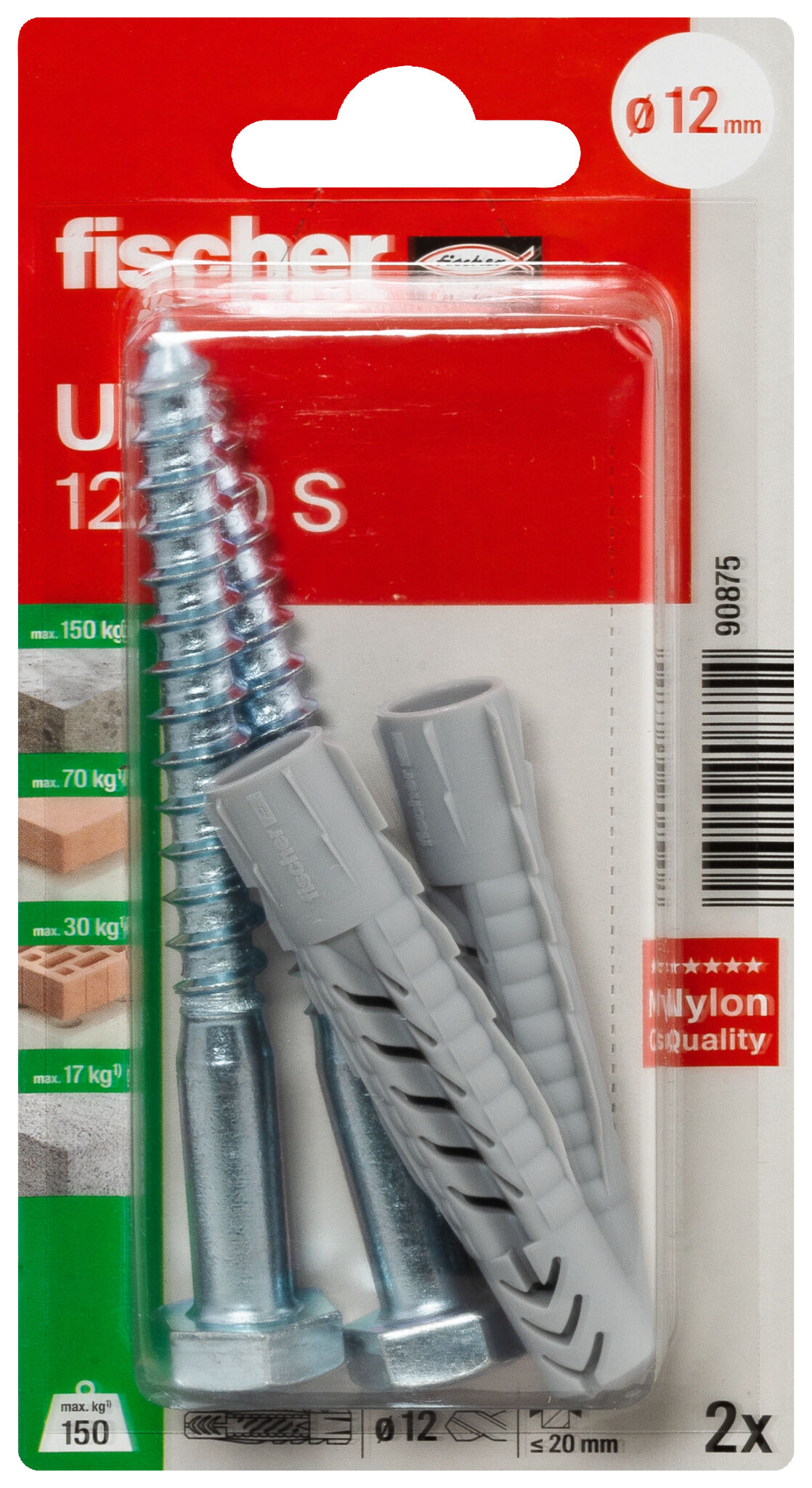

Contents	2 x Universal plug UX 12 x 70 2 x Hexagon head screw 10.0 x 100
Amount	2 pcs.
Packaging	Blister card
GTIN (EAN-Code)	4006209908754
