fischer Universal plug UX 6 x 35 R with rim

Top Features

Plug holds in all building materials.
Plug expands in solid building materials.
Maximum hold in solid and hollow building materials due to knotting.
Optimum screw guidance due to slanting connection bridges.
Installation safety due to anti-rotation lock.

The universal nylon plug with rim for all building materials.

Advantages

The universal operating principle (knotting or expanding) allows for use in all solid, hollow and board building materials. Thus the UX is the correct choice for unknown base materials.
The UX's angled connection ridges allow for optimum screw guidance. Serrated anti-rotation locks prevent rotation in the drill hole. This guarantees the greatest possible installation safety.

The fischer universal fixing is an all-rounder made of high-quality nylon. The fixing holds in concrete as well as aerated concrete, masonry, as well as in gypsum plasterboard and gypsum fibreboard. The fixing knots in these building materials. The integrated edge serves a practical purpose. It means that the plug does not slip into the drill hole during insertion. The fischer universal fixing UX can be used to fix, for example, lights, curtain rails, lightweight cupboards, and cornicing.

Applications

Lighting
Light cabinets
Towel rails
Mirror cabinets
TV consoles

Building materials

Concrete
Gypsum plasterboard and gypsum fibreboards
Vertically perforated brick
Hollow blocks made from lightweight concrete
Cavity floor slabs made from bricks and concrete
Perforated sand-lime brick
Solid sand-lime brick
Natural stone
Aerated concrete
Chipboard
Solid panel made from gypsum
Solid brick made from lightweight concrete
Solid brick

You can find detailed information on building materials in the registration document.

Functionality

The UX without rim is suitable for push-through installation, the UX with rim for pre-positioned installation.
Turning in the screw causes the UX to expand in the solid building material and to knot within the cavity.
The required screw length is given by the plug length + fixture thickness + 1 x screw diameter.
Suitable for wood and chipboard screws, as well as stud screws.
In the case of board building materials, the threadless part of the screw must not be longer than the fixture, and the UX with rim is to be used.
The edge distance must be at least one plug length.

Mounting Strip 1 Picture

1 / 6

Drill diameter ( d₀ )	6 mm
Min. drill hole depth ( h₁ )	45 mm
Min. panel thickness ( d_p )	12,5 mm
Anchor length ( l )	35 mm
Wood and chipboard screws ( d_s )	4.0 - 5.0 mm

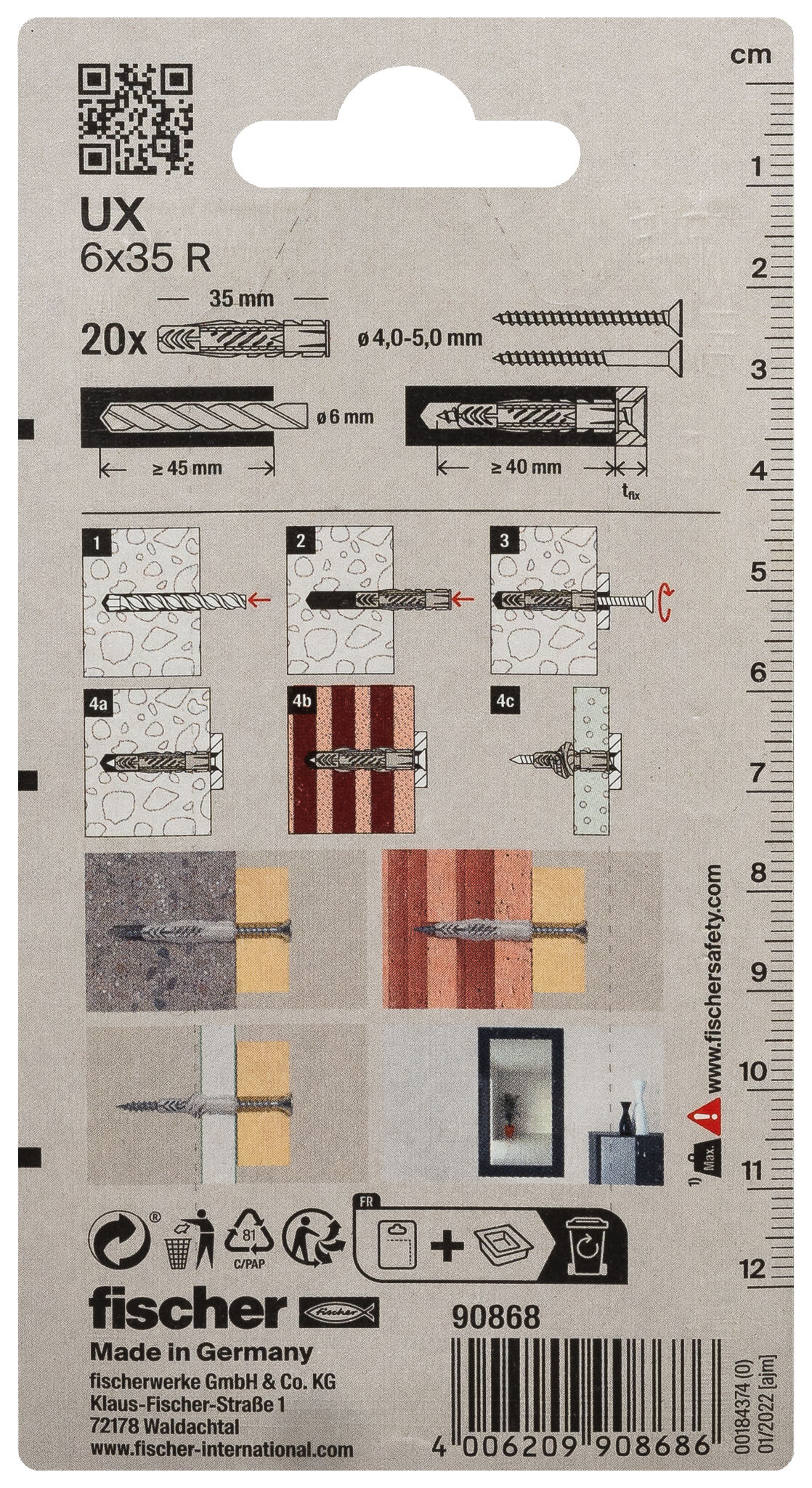

Contents	20 x Universal plug UX 6 x 35 with collar
Amount	20 pcs.
Packaging	Blister card
GTIN (EAN-Code)	4006209908686
