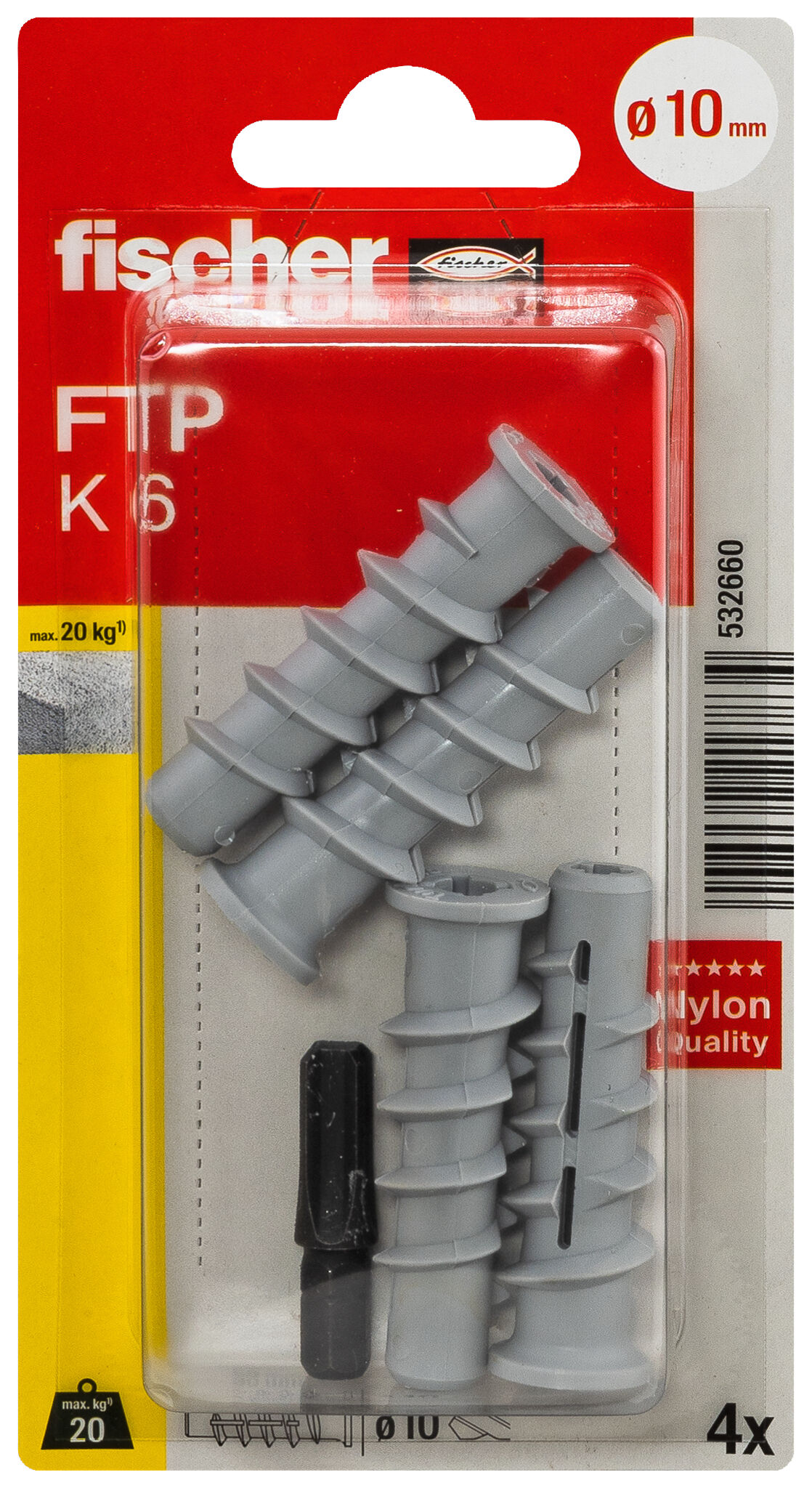

fischer Turbo aircrete anchor FTP K 6 K SB-card

Top Features

Installation with wood screws or metric screws is possible.
Fixing close to the rim is also possible.
Hold heavy objects.
Minimal effort needed during installation.

The versatile plastic anchor for aerated concrete.

Advantages

The FTP K is suitable for both wood screws and metric screws, and thus offers flexibility in screw choice.
The spiral-shaped outer thread taps itself into the soft aerated concrete with a positive fit, thus ensuring a secure hold.
Setting with the FTP EK setting tool requires only a small amount of force. For a convenient installation.
The special geometry allows for an almost expansion-force-free anchoring. This allows for small edge and spacing distances, and avoids splitting in the case of plastered surfaces.

The fischer turbo Aircrete anchor FTP K is a special fixing for fixings in Aircrete. The anchor is made out of high-quality nylon and is set in the pre-positioned installation with the setting tool FTP EK after pre-drilling. The spiral external thread cuts a mechanical interlock in the building material. The fischer turbo Aircrete anchor FTP K is ideally suited to securely fix pictures, lights, cable and pipe clamps to aerated concrete.

Drill diameter ( d₀ )	8 mm
Min. drill hole depth ( h₁ )	60 mm
Anchor length ( l )	50 mm
Woodscrew diameter ( d_s )	5 - 6 mm
Metric screw ( M )	M5 - M6
Min. bolt penetration ( l_E,min )	40 mm
Max. bolt penetration ( l_E,max )	60 mm
Contents	4 x FTP K6, 1 x Profi-bit PH3
Amount	4 pcs.
Packaging	Blister card
GTIN (EAN-Code)	4048962217834
