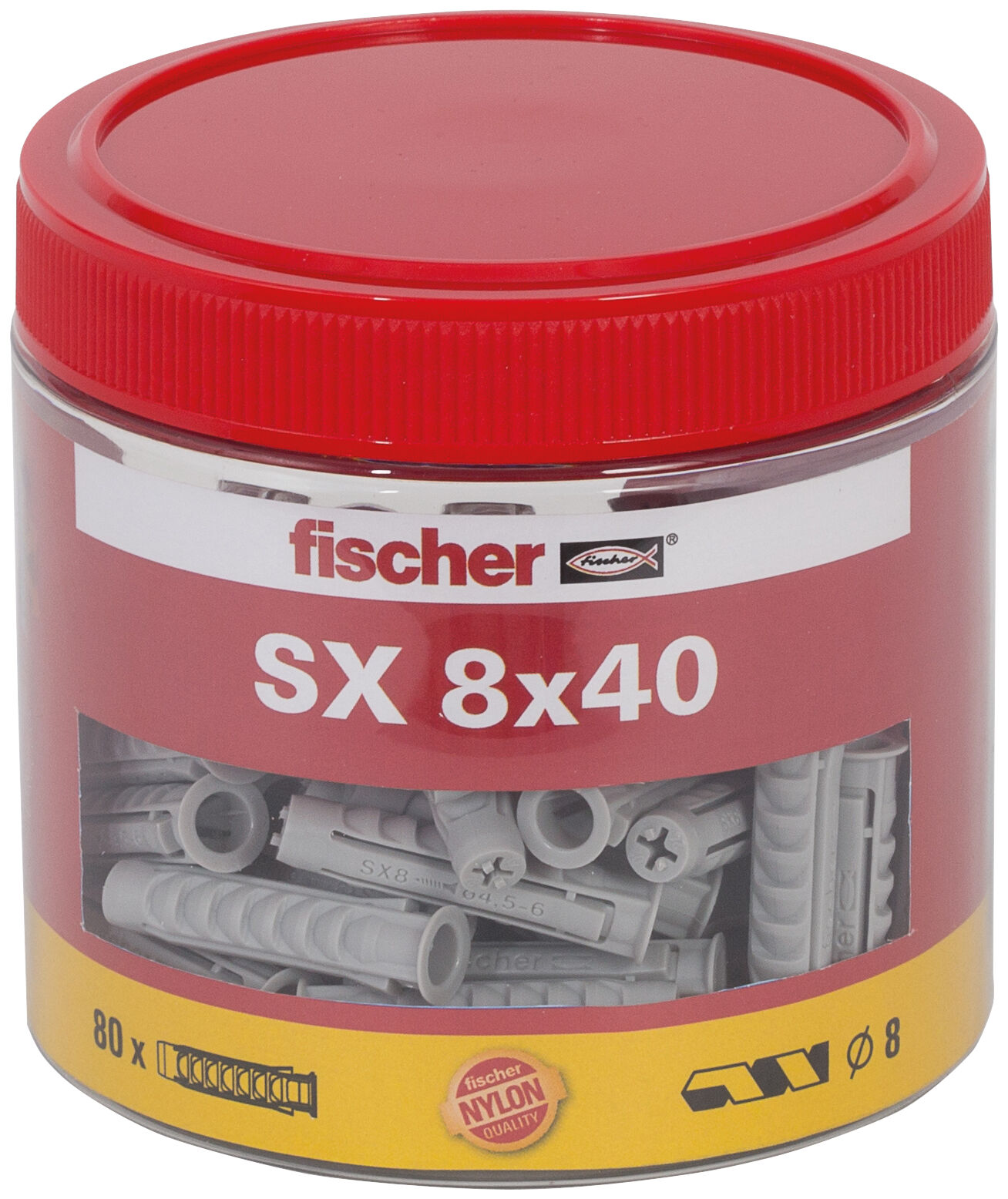

fischer Expansion plug SX 8 x 40 tin

Top Features

Optimum force transmission due to four-way expansion. This allows for high holding values in solid and hollow building materials.
Simple to assemble: The edge of the plug prevents it from falling deeper into the drill hole.
No expansion pressure on the plug neck. This means that tiles or plaster are not damaged.

The powerful nylon plug with 4-way expansion

Advantages

The 4-way expansion provides the optimum force distribution in the material, and offers high load-bearing capacities in solid and hollow building materials.
The expansion-free plug neck prevents the creation of expansion forces on the material surface whilst screwing in the screw. This helps to prevent damage to tiles and plaster.
The pronounced rim prevents the plug from slipping into the drill hole, thus allowing for a simple installation.

Due to four-way expansion, the fischer expansion plug SX optimally transfers forces into the building material. The high-quality nylon used in production and typical expansion guarantee a secure, permanent connection. The edge on the head of the fixing prevents the fixing from slipping into the drill hole.

Applications

Lighting
Wardrobes
Motion detectors
Skirting
Light shelves
Mirror cabinets
Letter boxes
TV consoles
Trellis
Folding shutters
Bath and toilet installations

Building materials

Concrete
Vertically perforated brick
Hollow blocks made from lightweight concrete
Cavity floor slabs made from bricks and concrete
Perforated sand-lime brick
Solid sand-lime brick
Natural stone with dense structure
Aerated concrete
Solid panel made from gypsum
Solid brick made from lightweight concrete
Solid brick

Az adott esetben elérhető engedélyben szereplő adatok (építőanyagok, terhelések stb.) érvényesek. További dokumentumok itt találhatók: https://www.fischer.de/sdb.

Drill diameter ( d₀ )	8 mm
Min. drill hole depth ( h₁ )	50 mm
Anchor length ( l )	40 mm
Wood and chipboard screws ( d_s )	4.5 - 6.0 mm
Contents	80 x Expansion plug SX 8 x 40
Amount	80 pcs.
Packaging	Assortment box
GTIN (EAN-Code)	4048962207378
