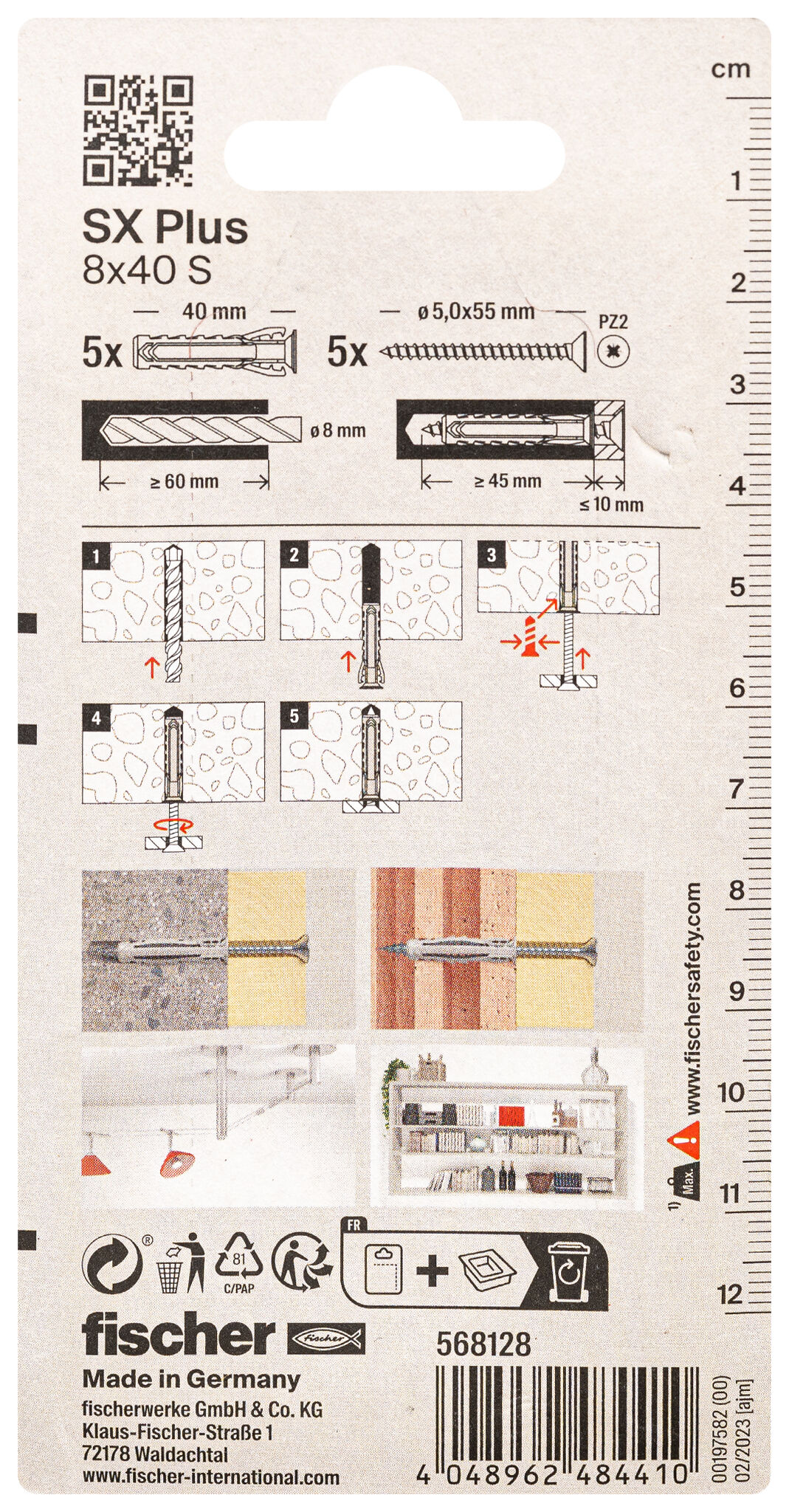

fischer Expansion plug SX Plus 8 x 40 S with screw

Top Features

4-way expansion for high load values.
Fixing blades for screw fixation and flexible mounting.
With matching screw for maximum hold.
Plug edge prevents slipping deeper into the drill hole.
Noticeable tightening torque prevents overtightening of the screw.

The specialist for solid building materials.

Advantages

The 4-way spread ensures optimum force transmission into the building material and guarantees high holding values in solid and perforated building materials.
The special fixing blades ensure pre-fixation of the screw, leaving both of the user's hands free during the setting process.
The expansion-free plug neck prevents the creation of expansion forces on the material surface whilst screwing in the screw. This helps to prevent damage to tiles and plaster.
The special shape of the plug makes it easy to place in the drill hole with just a few hammer blows.
The pronounced edge of the plig prevents it from slipping deeper into the drill hole and enables secure installation.
Due to the noticeable tightening torque, the user automatically recognizes when the screw is properly installed and thus prevents overtightening of the screw.

Thanks to its 4-way expansion, the fischer SX Plus expansion plug is the specialist for solid building materials such as concrete, sand-lime brick and masonry. The special fixing blades ensure pre-fixation of the screw, which means that it does not have to be additionally held in place for overhead applications. This screw fixation allows the user a flexible and comfortable setting process. The flexibel plug edge also prevents the plug from slipping deeper into the drill hole for secure installation. The screws supplied are optimally matched to the fischer SX Plus expansion plug. The high-quality nylon material guarantees a permanently secure hold in a wide range of solid and perforated building materials.

Applications

Lamps
Wardrobes
Motion detectors
Skirting boards
Light wall shelves
Mirror cabinets
Mailboxes
TV consoles
Trellis
Folding shutters
Bathroom and WC equipment
Fire detector

Building materials

Concrete
Solid brick
Solid sand-lime brick
Aerated concrete
Vertically perforated brick
Perforated sand-lime brick
Plasterboard
Plastered wall (Forato type F8/ Sepa Parpaing)
DOPPIO UNI 19

Es gelten die Details (Baustoffe, Lasten, etc.) der ggf. verfügbaren Zulassung. Weitere Dokumente finden Sie im Download Center.

Functionality

The SX Plus is suitable for pre-positioned and push-through installation.
When the plug is inserted, the fixing bladeds fold inwards. This locks the screw in place when it is inserted into the plug and prevents it from falling out, which is particularly helpful in overhead applications.
When the screw is tightened, the SX Plus expands in four directions and thus anchors itself securely in the building material.
The rotation lock prevents the plug from twisting and allows for easy installation.
The special design of the SX Plus anchor ensures a high tightening torque and thus prevents overtightening of the screw.

Mounting Strip 1 Picture

1 / 5

Mounting Strip 2 Picture

1 / 5

Mounting Strip 3 Picture

1 / 5

Drill diameter ( d₀ )	8 mm
Min. drill hole depth ( h₁ )	50 mm
Anchor length ( l )	40 mm
Wood and chipboard screws ( d_s )	5.0 x 55 mm
Contents	5 x Expansion plug SX Plus 8 x 40 5 x Chipboard screw 5.0 x 55
Amount	1 pcs.
Packaging	Blister card
GTIN (EAN-Code)	4048962484410
