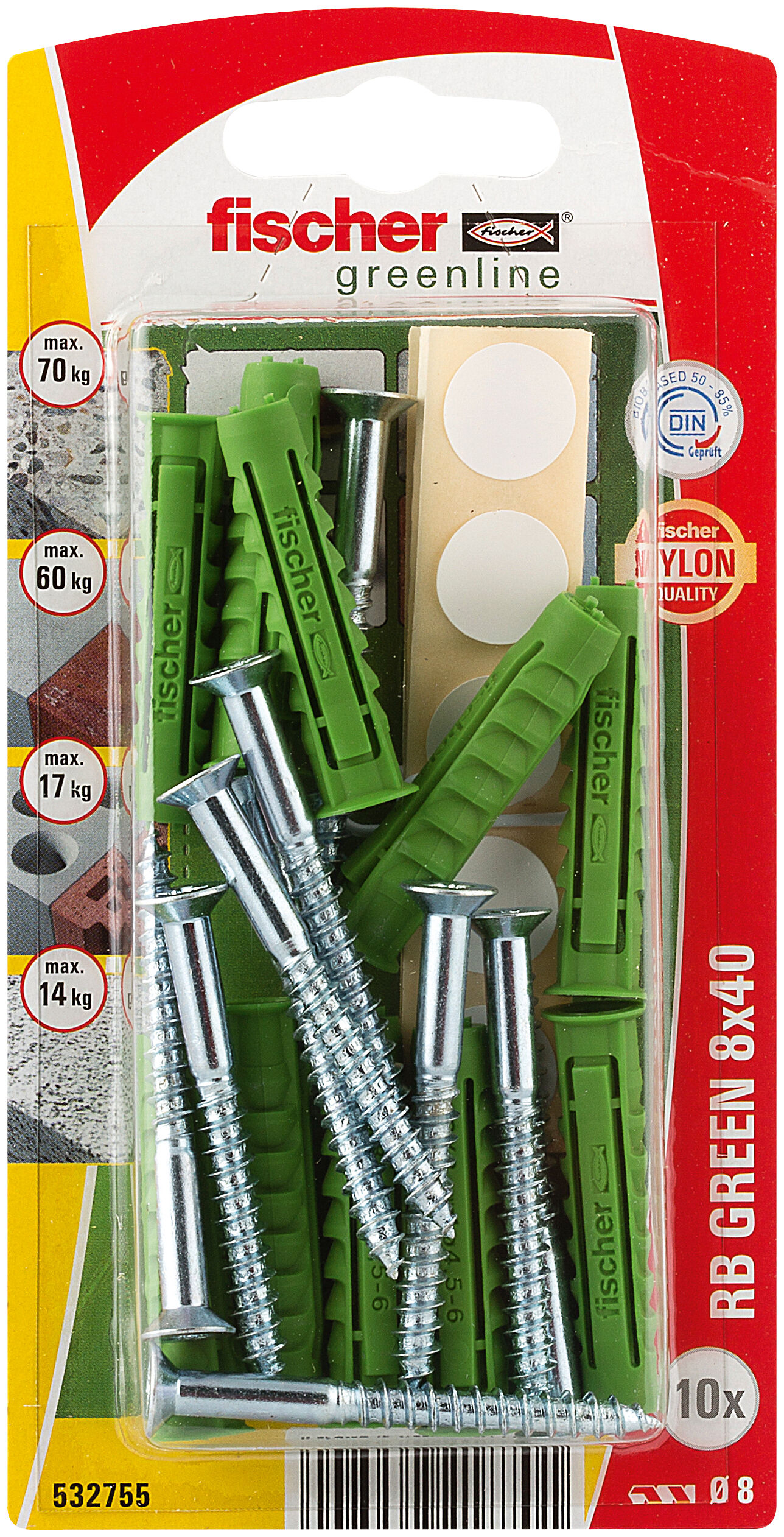

fischer shelving bracket fixing RB Green 8x40 K NV

Top Features

Simple to assemble: The edge of the plug prevents it from falling deeper into the drill hole.
No expansion pressure on the plug neck. This means that tiles or plaster are not damaged.
Optimum force transmission due to four-way expansion. This allows for high holding values in solid and hollow building materials.
Matching coloured labels.

SX Green-plug with screws and labels

Advantages

Produced with at least 50% renewable raw materials and therefore particularly environmentally friendly.
Just as effective, secure and durable as regular SX plugs.
The powerful 4-way expansion provides optimum force transmission in the building material, thus enabling high load values and security.
The anti-rotation lock prevents the plug from spinning in the drill hole.
The expansion-free plug neck prevents the creation of expansion forces on the material whilst screwing in the screw. This helps to prevent damage to tiles and plaster.
Fast and easy push-through installation reduces installation time.

The fischer expansion plug SX Green transfers force optimally in the building material through the 4-way expansion. Apart from the typical expansion, the high-quality nylon used for its production guarantees secure and permanent fixing. The packaging already includes screws in the correct diameter and length This saves searching and guarantees that the screw optimally fits the plug. Shelves and shelf rails can be ideally fixed with the fischer expansion plug SX Green.

Applications

Lighting
Wardrobes
Light shelves
Mirror cabinets
TV consoles
Trellis

Building materials

Concrete
Vertically perforated brick
Hollow blocks made from lightweight concrete
Cavity floor slabs made from bricks and concrete
Perforated sand-lime brick
Solid sand-lime brick
Natural stone with dense structure
Aerated concrete
Solid panel made from gypsum
Solid brick made from lightweight concrete
Solid brick

You can find detailed information on building materials in the registration document.

Approvals

8C029

Drill diameter ( d₀ )	8 mm
Min. drill hole depth ( h₁ )	50 mm
Anchor length ( l )	40 mm
Wood and chipboard screws ( d_s )	5.0 x 50 mm
Contents	10 x Expansion plug SX Green 8 x 40 10 x Screw 5.0 x 50 10 x Sticker black, white, brown, grey
Amount	10 pcs.
Packaging	Blister card
GTIN (EAN-Code)	4048962218701
