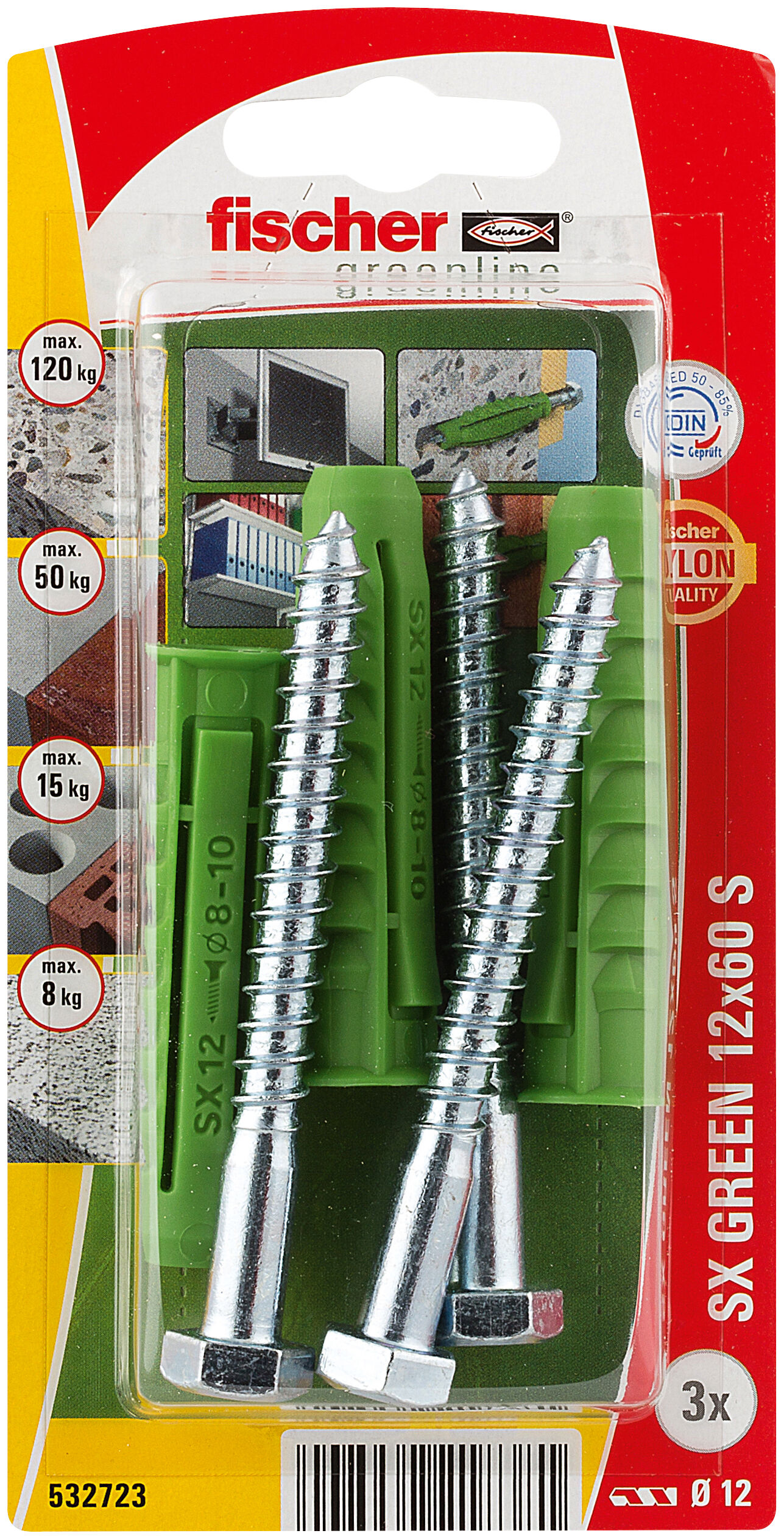

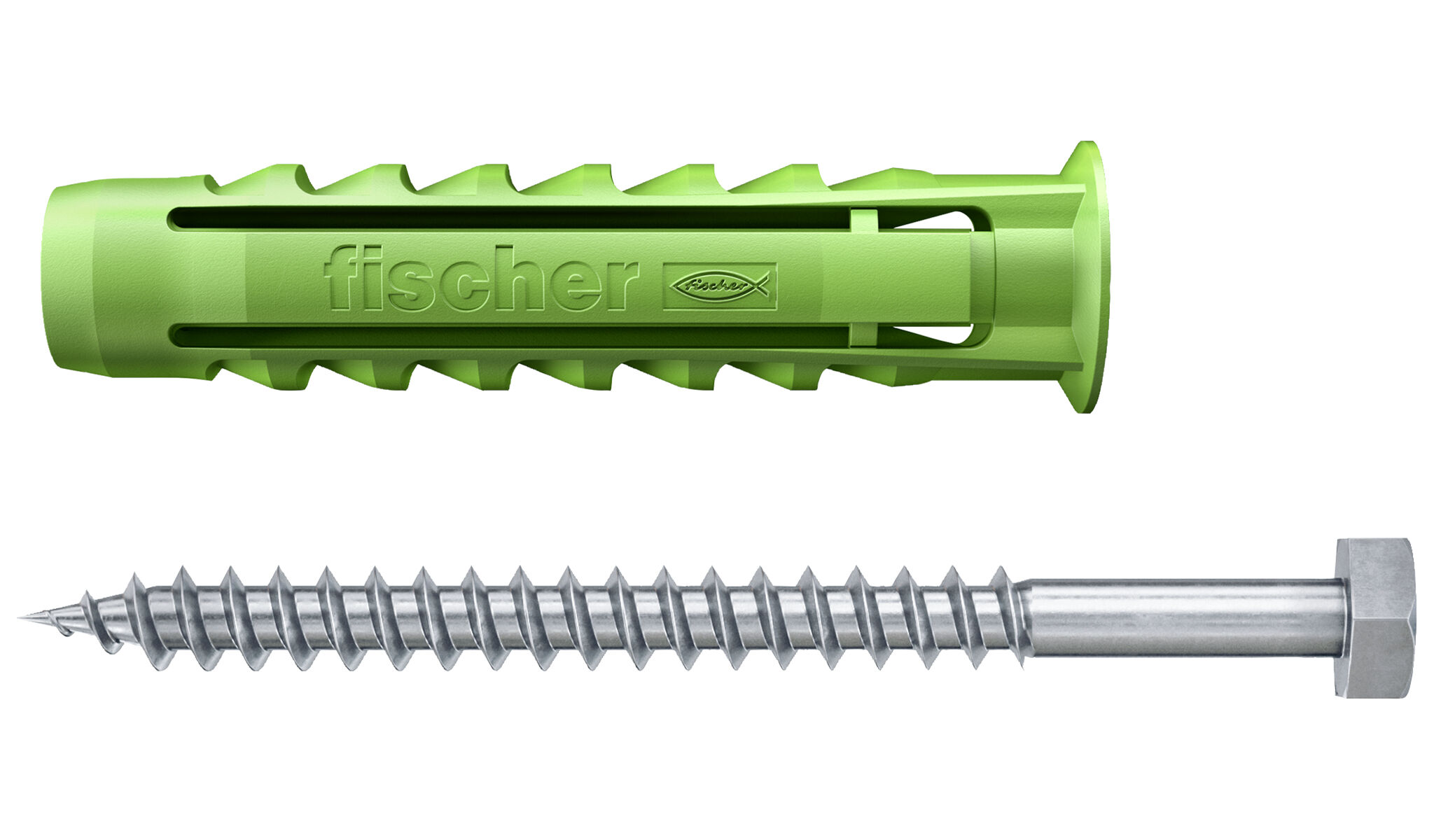

fischer Expansion plug SX Green 12 x 60 S with screw

Top Features

Made from at least 50 % renewable raw materials - same load-carrying properties as the original grey version.
Optimum force transmission due to four-way expansion. This allows for high holding values in solid and hollow building materials.
Simple to assemble: The edge of the plug prevents it from falling deeper into the drill hole.
No expansion pressure on the plug neck. This means that tiles or plaster are not damaged.
With the appropriate screw for maximum hold.

The powerful nylon fixing with renewable raw materials with four-fold expansion, rim, and screw.

Advantages

The 4-way expansion provides the optimum force distribution in the material, and offers high load-bearing capacities in solid and hollow building materials.
The expansion-free plug neck prevents the creation of expansion forces on the material surface whilst screwing in the screw. This helps to prevent damage to tiles and plaster.
The pronounced rim prevents the plug from slipping into the drill hole, thus allowing for a simple installation.

The fischer expansion plug SX Green is produced from at least 50 % renewable raw materials. Due to four-way expansion, the nylon plug ensures optimal force transmission into the building material. The anti-rotation lock fixes the SX Green tightly in the drill hole. The edge on the head of the fixing prevents the fixing from slipping into the drill hole. The screws supplied are ideally suited to the fischer expansion plug SX Green. This guarantees perfect hold.

Applications

Shelves
Mirror cabinets
TV consoles
Folding shutters
Bath and toilet installations

Building materials

Concrete
Vertically perforated brick
Hollow blocks made from lightweight concrete
Cavity floor slabs made from bricks and concrete
Perforated sand-lime brick
Solid sand-lime brick
Natural stone with dense structure
Aerated concrete
Solid panel made from gypsum
Solid brick made from lightweight concrete
Solid brick

Μπορείτε να βρείτε λεπτομερείς πληροφορίες σχετικά με τα δομικά υλικά στο έγγραφο καταχώρισης.

Πιστοποίηση

8C029

Drill diameter ( d₀ )	12 mm
Min. drill hole depth ( h₁ )	80 mm
Anchor length ( l )	60 mm
Wood and chipboard screws ( d_s )	8.0 x 80 mm
Contents	3 x Expansion plug SX Green 12 x 60 3 x Hexagon head screw 8.0 x 80
Amount	3 pcs.
Packaging	Blister card
GTIN (EAN-Code)	4048962218381
