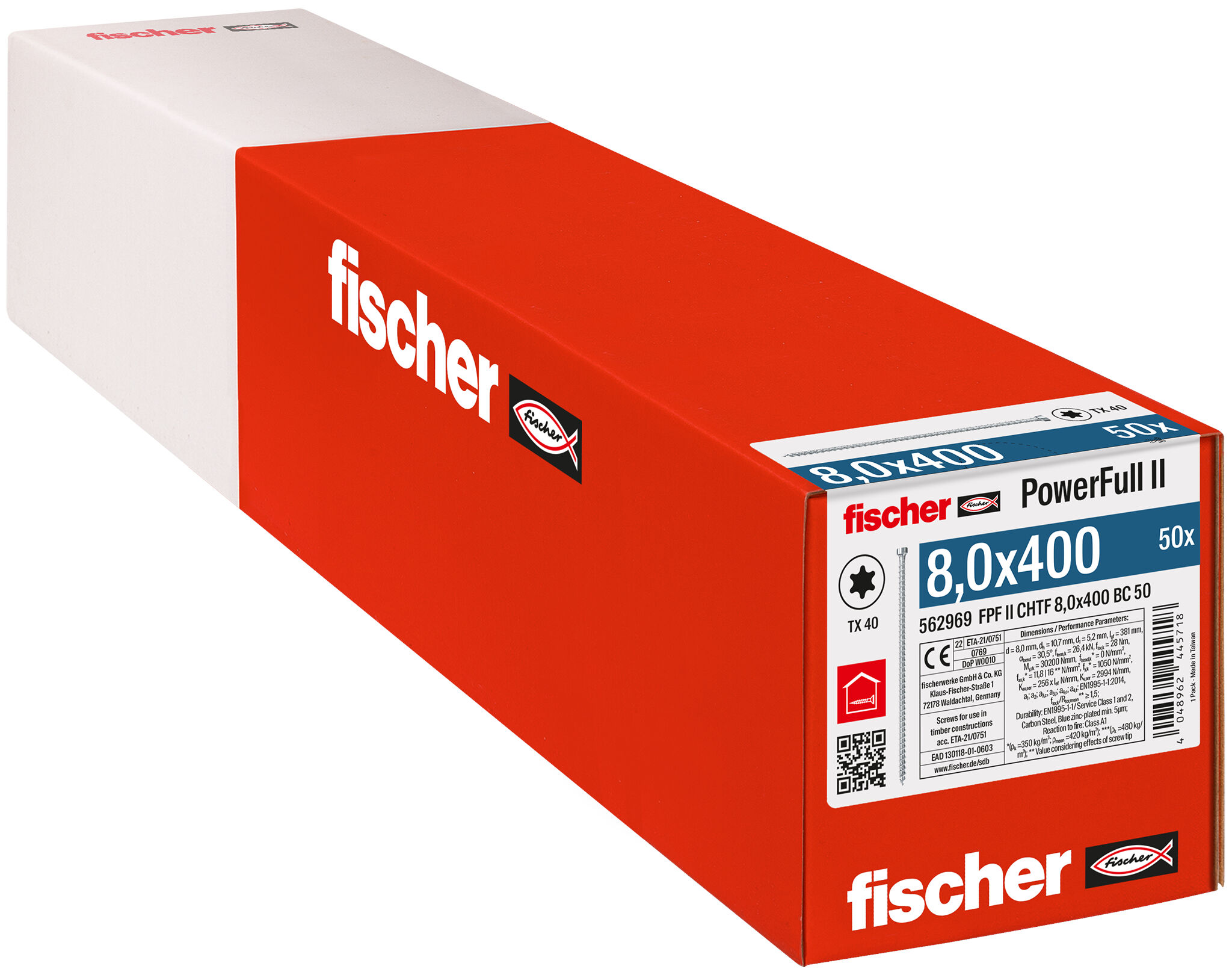

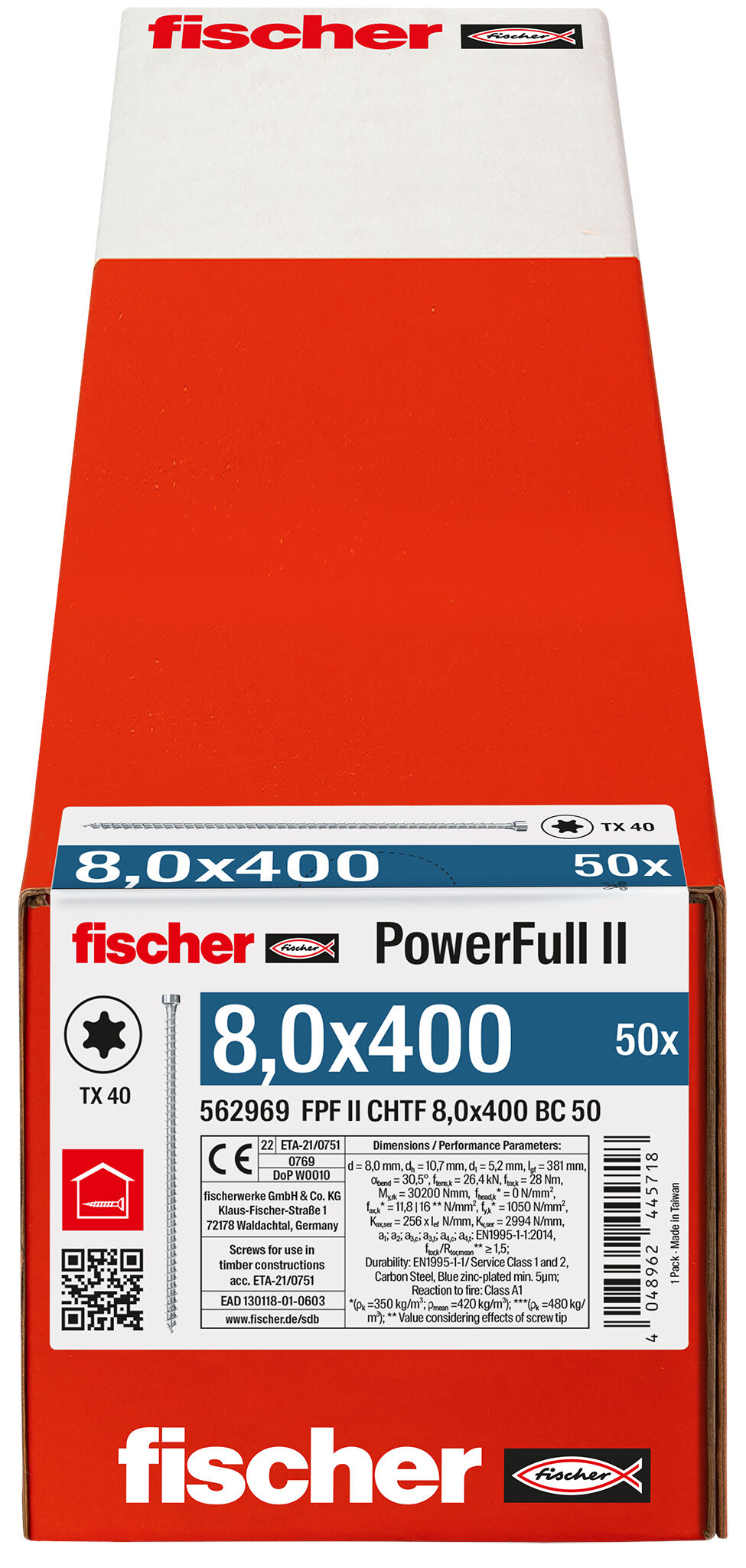

fischer Full thread screw PowerFull II CHTF 8.0 x 400 BC 50 cylinder head TX star recess full thread blue zinc plated

Top Features

Thanks to the innovative tip geometry, screws are driven in quickly without much splintering.
The cylindrical head with additional milling pockets ensures clean countersinking of the head. This can be countersunk deep into the wood using a long bit.
Significantly better technical values such as pull-out load capacity, screw-in torque thanks to the new screw geometry.
Thanks to the tip geometry (needle point), the screws are easy to place even in extreme situations e.g. for angled screw connections.

For economical connections of load-bearing wood constructions

Advantages

The unique core milling geometry makes low axial and edge distances as well as high loads possible.
The innovative tip geometry ensures that screws are driven fast and reduces splintering of the substrate. The needle point makes the screw easy to place e.g. for angled screw connections even in extreme situations.
The cylindrical head with additional milling pockets ensures clean countersinking of the head. This can be countersunk deep into the wood using a long bit.
The new screw geometry significantly improves the pull-out load capacity and optimises the screw-in torque.

The fischer premium full thread screw PowerFull II is a wood construction screw that is assessed for work in hardwood as well as in the usual softwood. The version with cylinder head is equipped with additional milling pockets which make clean countersinking in the substrate possible. The European Technical Assessment guarantees added safety. The geometry of the latest generation ensures less power and battery are needed for assembly. The optimised head geometry enables perfect work. The full thread screw PowerFull II is ideal for fastening and strengthening wood-wood connections.

Applications

Connection main beam / substructure
Chevron-purlin connection
Reinforcement of notches
Openings
Beam false edges
Beam reinforcements
Strengthening perpendicular to the grain
Coupling purlins
Support reinforcement / transverse pressure reinforcement
Shear wood fixing (for roof insulation)
Refurbishment of old beams
Footing beams
Element connections in wood frame construction
Pressed steel-wood connections

Building materials

Solid hardwood of material strength classes C14 - C40 in accordance with EN 338 / EN 14081-1
New: Solid beech, ash or oak in accordance with EN 338 / EN 14081-1, with pre-drilling
Glued-laminated timber of at least material strength class GL24c in accordance with EN 1194 / EN 14080
New: Glued-laminated timber made of beech, ash or oak according to European Technical Approval or the national regulations applicable at the installation site, with pre-drilling
Laminated veneer lumber LVL in accordance with EN 14374
Glued-solid timber Duo and Trio beams in accordance with EN 14080 or the national regulations applicable at the installation site
Cross-laminated timber according to European Technical Approval or the national regulations applicable at the installation site
Construction beech in line with approval Z-9.1-838 and Z-9.1-837 and FST according to ETA-14/0354, with pre-drilling

登録ドキュメント内に母材に関する詳細な情報が記載されています

ETA-21/0751
DoP No. W0010

ETA-approval
Diameter ( d )	8 mm
Length ( l )	400 mm
Drive	TX40
Thread length ( l_g )	381 mm
Amount	50 pcs.
GTIN (EAN-Code)	4048962445718
