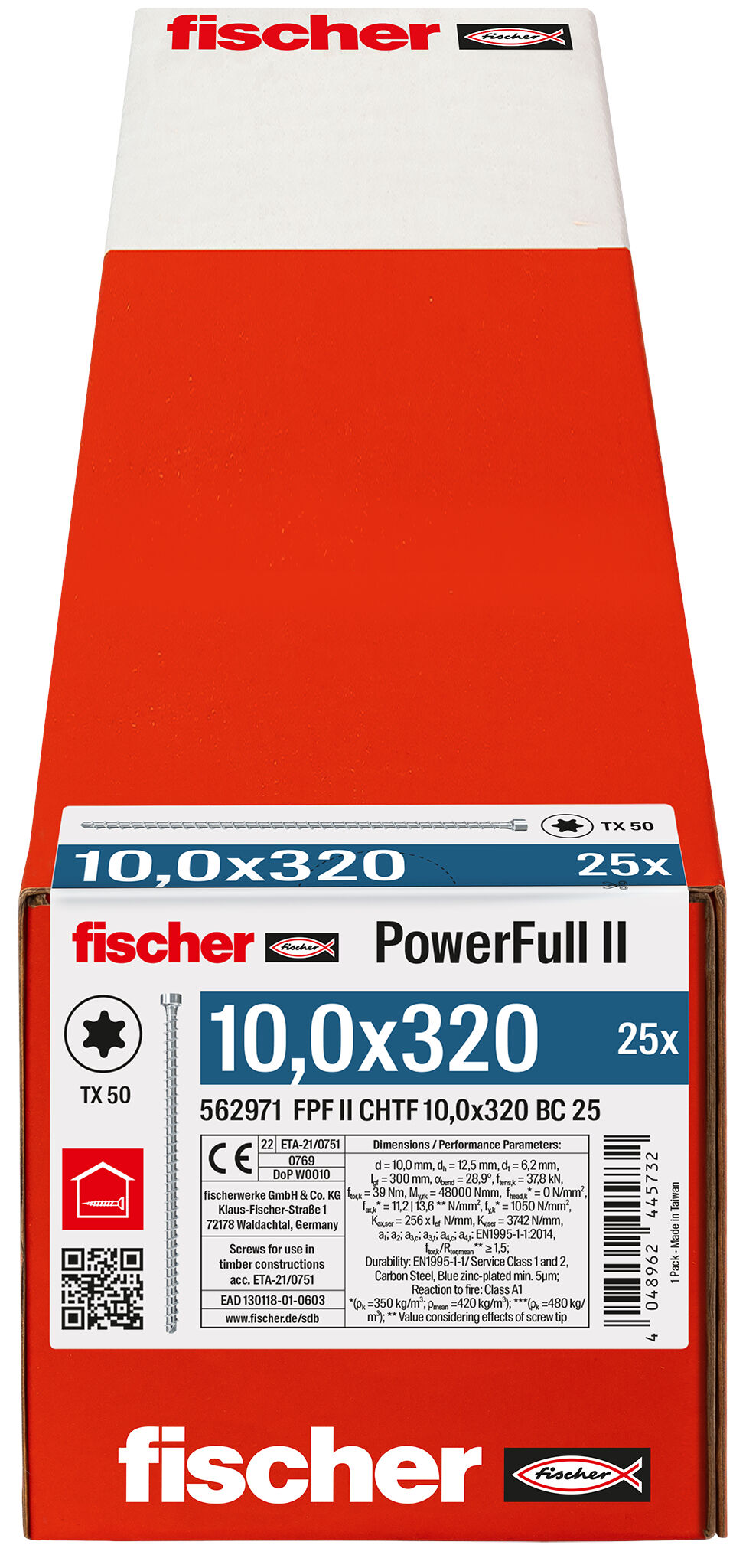

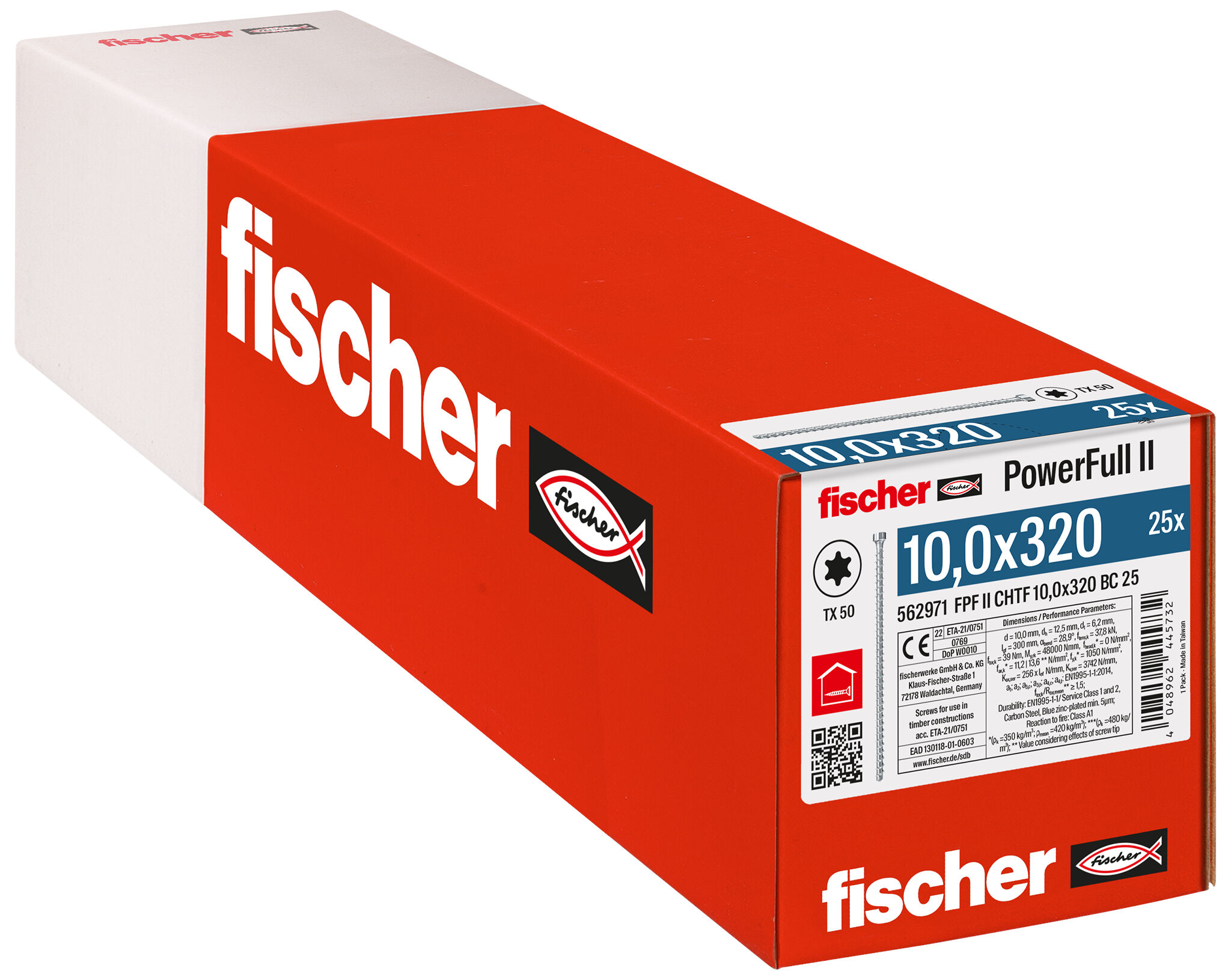

fischer Full thread screw PowerFull II CHTF 10.0 x 320 BC 25 cylinder head TX star recess full thread blue zinc plated

Top Features

Thanks to the tip geometry, screws are driven in quickly without much splintering.
The cylindrical head can be countersunk deep into the wood using a long bit.
Good technical values such as pull-out load capacity, screw-in torque thanks to the screw geometry.
The 10 mm screw has a drill point which creates a pre-drilling effect and stops the long screws running off centre.

For economical connections of load-bearing wood constructions

Advantages

The tip geometry makes low axial and edge distances as well as high loads possible.
The PowerFull II with a diameter of 10 mm has a distinctly different geometry to the diameters 6 and 8 mm. The 10 mm screw has a drill point which creates a pre-drilling effect and stops the long screws running off centre. There is less splintering risk is reduced and the screw-in torque is reduced.
The cylindrical head can be countersunk deep into the wood using a long bit.
The screw geometry significantly improves the pull-out load capacity and optimises the screw-in torque.

The fischer premium full thread screw PowerFull II is a wood construction screw that is assessed for work in hardwood as well as in the usual softwood. The PowerFull II with a diameter of 10 mm has a distinctly different geometry to the diameters 6 and 8 mm. The 10 mm screw has a drill point which creates a pre-drilling effect and stops the long screws running off centre. There is less splintering risk and the screw-in torque is reduced. In addition, it results in low edge and axial clearances. The version with cylinder head makes clean countersinking in the substrate possible. The European Technical Assessment guarantees added safety.

Applications

Connection main beam / substructure
Chevron-purlin connection
Reinforcement of notches
Openings
Beam false edges
Beam reinforcements
Strengthening perpendicular to the grain
Coupling purlins
Support reinforcement / transverse pressure reinforcement
Shear wood fixing (for roof insulation)
Refurbishment of old beams
Footing beams
Element connections in wood frame construction
Pressed steel-wood connections

Building materials

Solid hardwood of material strength classes C14 - C40 in accordance with EN 338 / EN 14081-1
New: Solid beech, ash or oak in accordance with EN 338 / EN 14081-1, with pre-drilling
Glued-laminated timber of at least material strength class GL24c in accordance with EN 1194 / EN 14080
New: Glued-laminated timber made of beech, ash or oak according to European Technical Approval or the national regulations applicable at the installation site, with pre-drilling
Laminated veneer lumber LVL in accordance with EN 14374
Glued-solid timber Duo and Trio beams in accordance with EN 14080 or the national regulations applicable at the installation site
Cross-laminated timber according to European Technical Approval or the national regulations applicable at the installation site
Construction beech in line with approval Z-9.1-838 and Z-9.1-837 and FST according to ETA-14/0354, with pre-drilling

Μπορείτε να βρείτε λεπτομερείς πληροφορίες σχετικά με τα δομικά υλικά στο έγγραφο καταχώρισης.

Πιστοποίηση

ETA-21/0751
DoP No. W0010

ETA-approval
Diameter ( d )	10 mm
Length ( l )	320 mm
Drive	TX50
Thread length ( l_g )	300 mm
Amount	25 pcs.
GTIN (EAN-Code)	4048962445732
