fischer Insulation support DHK 45/60

Top Features

Reduced drilling. Optimised geometry lowers anchorage depth.
Simple Hammerset installation saves time and costs.

The cost-effective plastic insulation support for all pressure resistant insulating boards.

Advantages

The optimised geometry of the expansion section ensures a low anchorage depth and reduces the amount of drilling required.
Flexible pins in the plate area adapt to the insulating material, and ensure a sustained contact pressure.
The simple hammerset installation allows for a quick installation process and thus reduces workload.
The DHK 45 is suitable for use in pressure-resistant insulating boards and reveals.

The fischer insulation support DHK is the cost-effective plastic insulation support for insulating boards with high compressive strength. The DHK is knocked in the push-through installation using a hammer. When knocking in, the ribs expand in the drill hole and the DHK is ideally pressed in. The fischer insulation support DHK is suitable for anchoring insulating boards in solid and perforated brick, concrete, and aerated concrete.

Applications

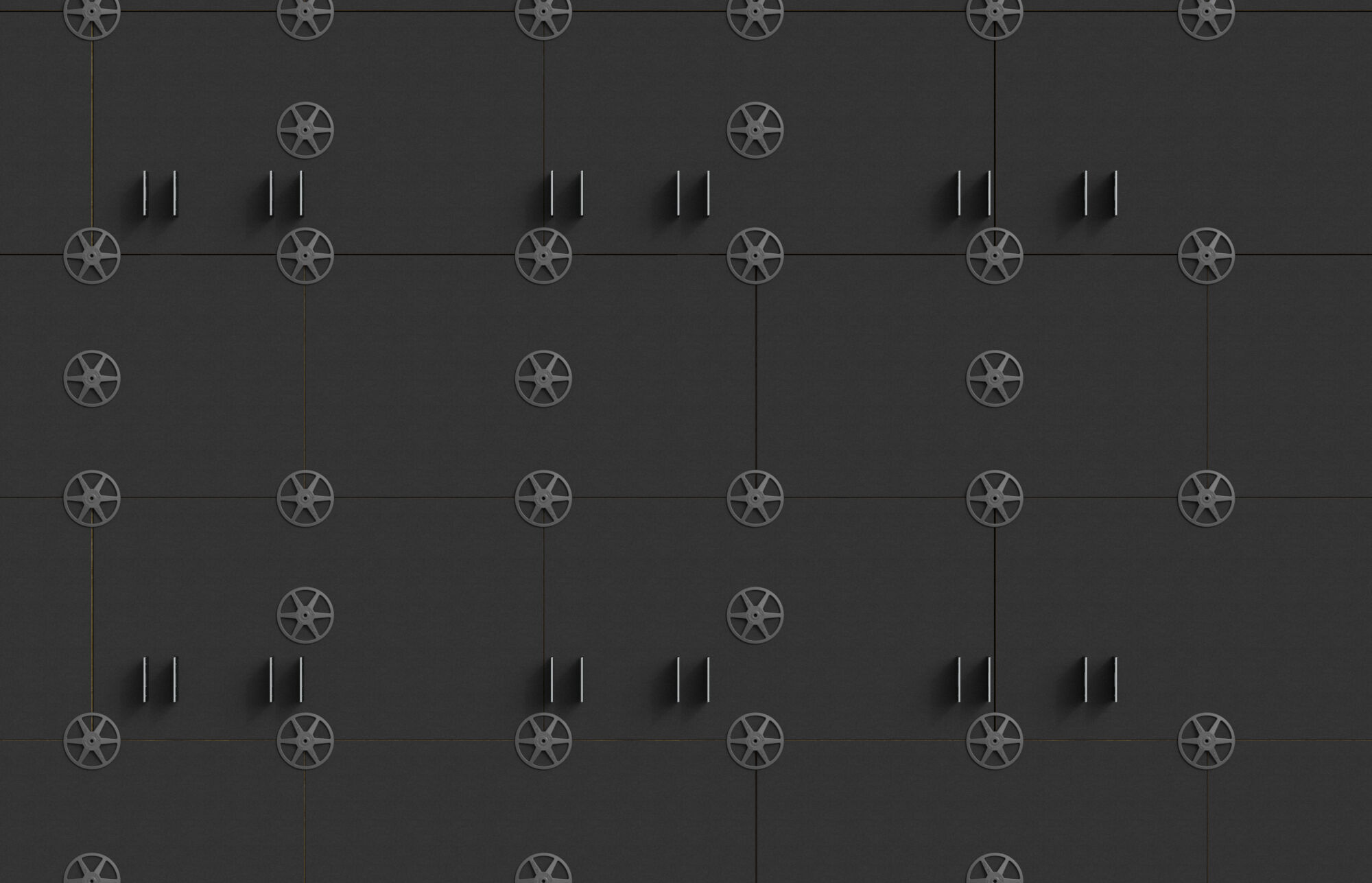

To fix soft and pressure-resistant insulating materials in rear-ventilated façades, such as:

Mineral / glass wool
PU panels
Light building boards made of wood wool
Cork boards / coir matting
Polystyrene
Foam glass tiles

Building materials

Concrete
Hollow blocks made from lightweight concrete
Vertically perforated brick
Perforated sand-lime brick
Solid sand-lime brick
Natural stone with dense structure
Aerated concrete
Solid brick made from lightweight concrete
Solid brick

Es gelten die Details (Baustoffe, Lasten, etc.) der ggf. verfügbaren Zulassung. Weitere Dokumente finden Sie im Download Center.

Drill diameter ( d₀ )	8 mm
Disc ø	45 mm
Min. drill hole depth ( h₁ )	30 mm
Effect. anchorage depth ( h_ef )	20 mm
Anchor length ( l )	85 mm
Max. fixture thickness ( t _fix )	60 mm
Packaging	Folding box
Amount	250 pcs.
GTIN (EAN-Code)	4006209808931
