Art.-No. 559111

GTIN (EAN-Code): 4048962417272

fischer TermoZ CS II 8/215

Top Features

The fixing is pushed through the insulation into the drill hole and is screwed in.
For countersunk monting, the setting tool TermoZ CS is required.
Optionally, the setting tool TermoZ CS can also be used for flush installation by turning the stopping disc.
When using the setting tool, the installation is completed when the stopping disc is flush with the insulation panel.
For countersunk mounting the anchor plate needs to be covered with a round cap. For a surface-flush assembly, a closing plug is not necessary.

The strong screw fixing for all insulation materials and substrates.

Advantages

Due to the steel compound screw of the TermoZ CS II, all facade insulations including the fire bar can be fastened securely.

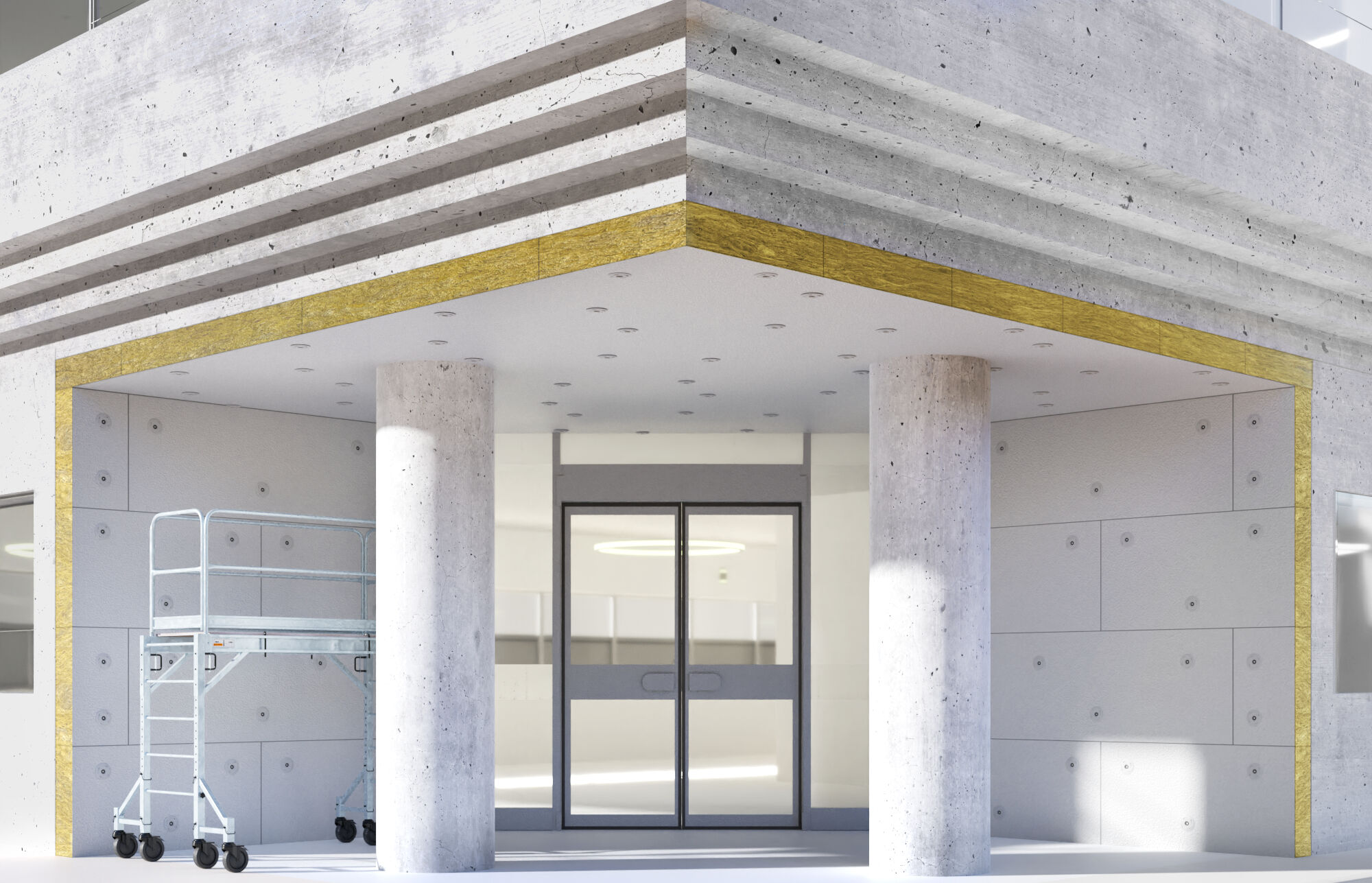

The screw fixing is also approved for fixing ETICS to ceiling undersides.
The setting tool is used to countersink the anchor optimally, resulting in an even plaster layer without anchor marks.
Due to the special expansion zone of the anchor sleeve, the TermoZ CS II, is the first insulation anchor with an approval for hammer-drilled holes in vertically perforated bricks.
The plate design and sleeve labeling allow correct and intuitive application.
The closed plate does not allow dirt to be ejected and thus ensures a clean setting result.
The special geometry of the underhead plate reduces the necessary insertion torque for convenient and fast installation.

TermoZ CS II est la fixation à vis solide pour l'isolation des murs extérieurs pour la fixation sûre de tout panneau isolant sur tous les matériaux de construction solides et perforés. Développé pour les besoins des installateurs, TermoZ CS II est facile à utiliser et garantit une installation rapide. La fixation isolante TermoZ CS II est approuvée pour toutes les classes de matériaux de construction courantes A,B,C,D,E. L’outil de réglage CS garantit un processus de réglage optimal sans marques d’ancrage.

Applications

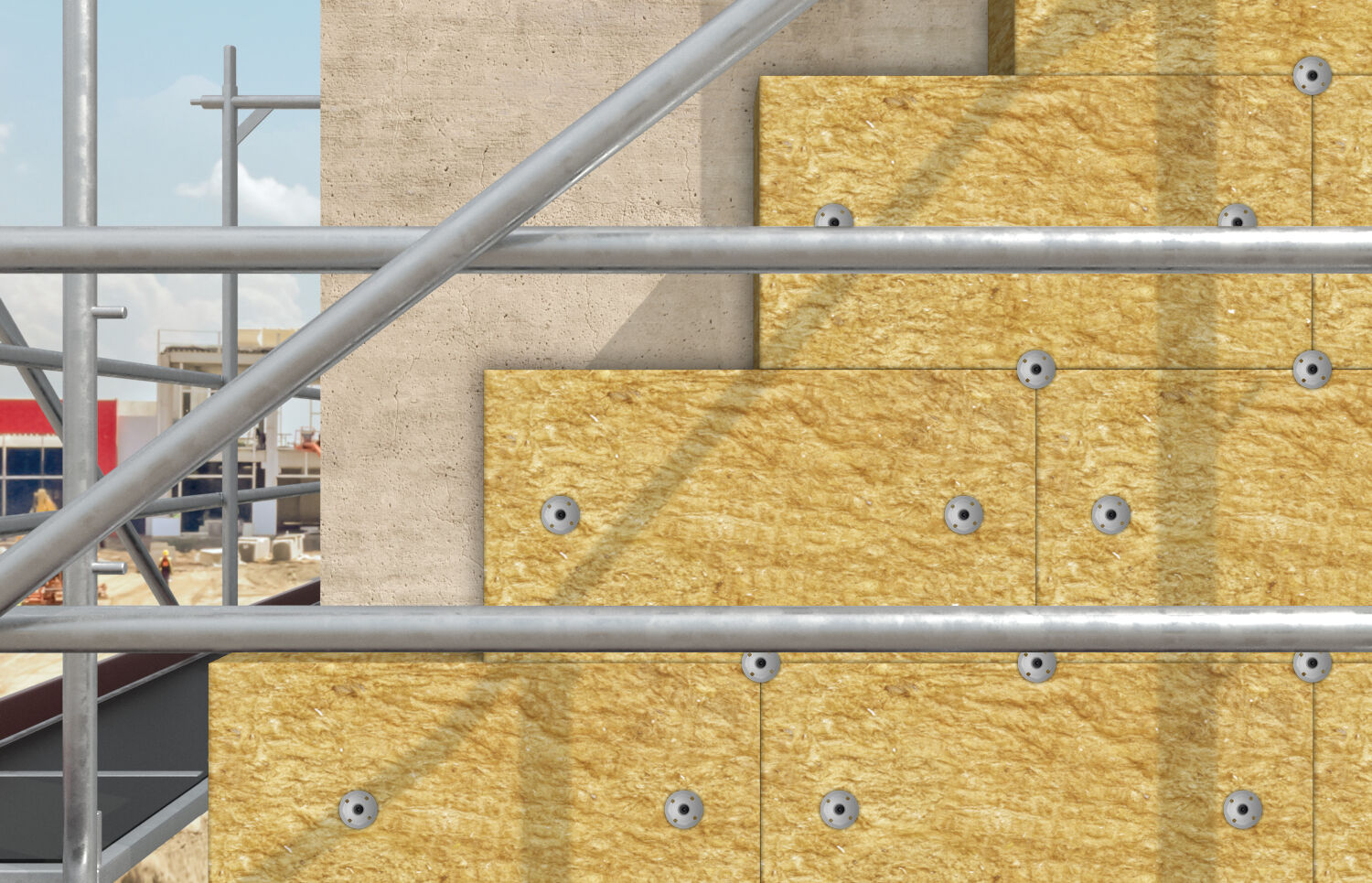

Attachment of ETICS insulating boards on concrete and masonry
Flush installation in all conventional insulation materials
Flush installation of insulation materials such as polystyrene rigid foam panels and dense mineral wool panels

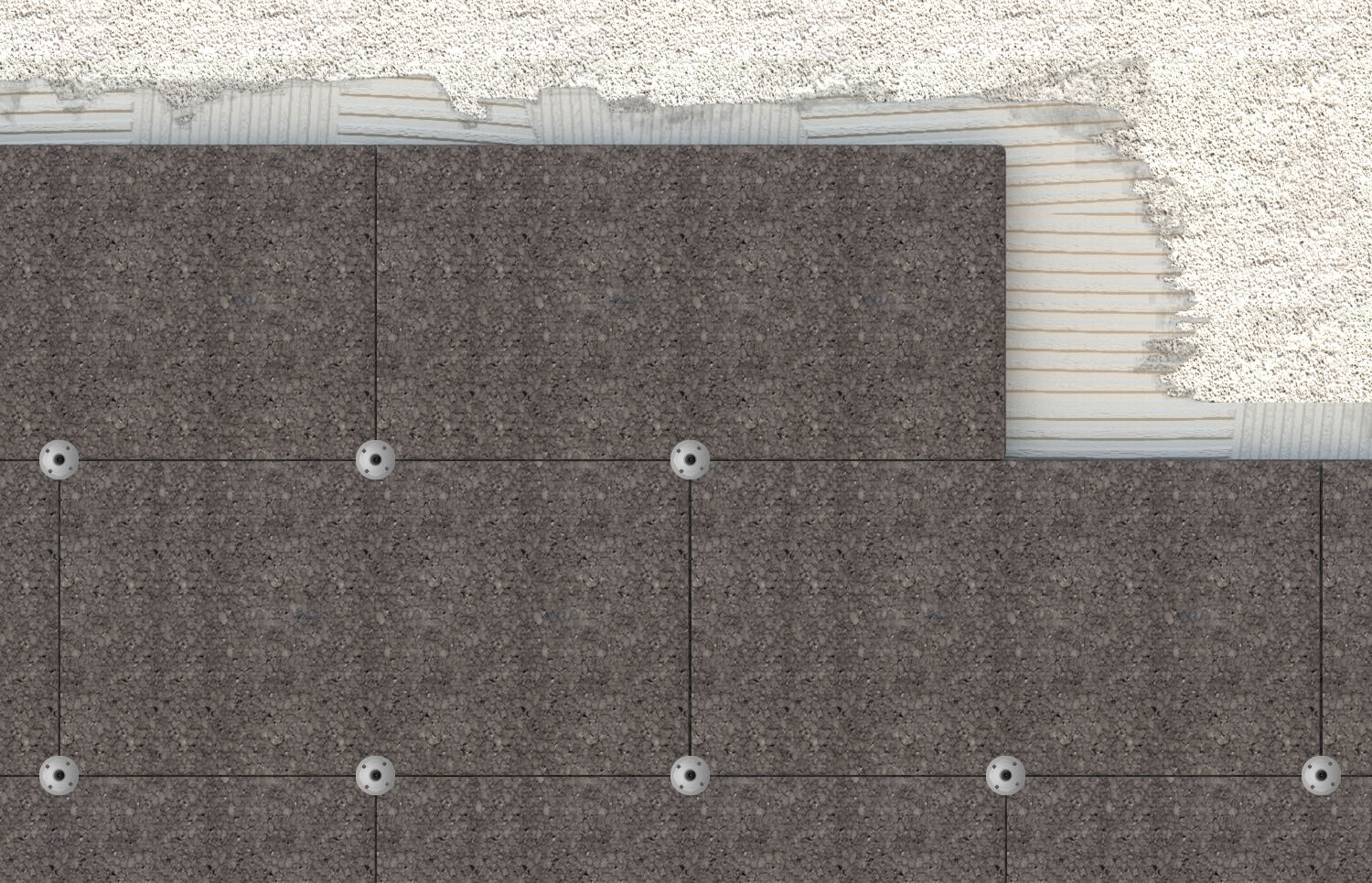

Fixing of ETICS insulating boards for new buildings and energetic building renovations

Building materials

Building material classes A, B, C, D, E
Concrete
Concrete (weather shell)
Building brick
Solid sand-lime brick
Hollow blocks made from lightweight concrete
Vertically perforated brick
Perforated sand-lime brick
Lightweight aggregate concrete
Aerated concrete

You can find detailed information on building materials in the registration document.

Approvals

ETA-14/0372
DoP No. 0298
DoP No. 0346

Functionality

The fixing is pushed through the insulation into the drill hole and is screwed in. For ceiling soffits, the installation is carried out through the base plaster including fabric and insulation.
For countersunk mounting, the setting tool TermoZ CS is required.
Optionally, the setting tool TermoZ CS can also be used for flush installation by turning the stopping disc.
When using the setting tool, the installation is completed when the stopping disc is flush with the insulation panel.
For countersunk mounting the anchor plate needs to be covered with a closing cap.
For a surface-flush setting, a closing plug is not necessary.

Mounting Strip 1 Picture

1 / 5

Mounting Strip 2 Picture

1 / 6

ETA-approval
Drill diameter ( d₀ )	8 mm
Effect. anchorage depth ( h_ef )	25 mm
Min. total drill whole depth incl. insulation at surface flush installation ( h )	230 mm
Max. usable length at surface-flush installation ( t_fix )	190 mm
Min. total drill whole depth incl. insulation at countersunk installation ( h )	245 mm
Max. usable length at countersunk installation ( t_fix )	190 mm
Drive	TX30
Amount	100 pcs.
GTIN (EAN-Code)	4048962417272

pdf, ETA-14/0372

European Technical Assessment for fischer TermoZ CS II 8 and fischer TermoZ CS II 8 DT 110 V

Created on 03/11/2023

pdf, DoP No. 0298

Declaration of Performance for fischer TermoZ CS II 8 / TermoZ CS II 8 DT 110 V (Plastic fastener for fixing of external thermal insulation composite systems with rendering)

Created on 16/05/2022

pdf, DoP No. 0346

Declaration of Performance for fischer TermoZ CS II 8 / TermoZ CS II 8 DT 110 V (Plastic anchors for use in concrete)

Created on 17/11/2023

TermoZ CS II - Permissible tension loads for a single anchor for multiple use for non-structural applications.
