Name: fischer TermoZ CN 8/250
Brand: fischer

The high-performance ETICS hammerset fixing with compound nail.

Advantages

To set with few hammer blows.
The disc fits tight into the insulation thanks to its thickness of only 2.5 mm. Thus allows the application of low-cost, thin reinforcement layers.
High retention forces thanks to the steel tip of the compound nail.
Small anchoring depth of 35 mm saves on drilling times.
The TermoZ CN is virtually free of thermal bridging due to the compound nail.
The compression zone in the shank allows the disc to be drawn in precisely.
Can be combined with the insulating discs DT 90, DT 110 and DT 140 for very soft insulating materials.
For insulating material thicknesses up to 340 mm.

The fischer termoz CN is ideal for fixing pressure-resistant insulation 400 mm thick such as polystyrene boards or mineral wool boards, wood wool lightweight panels in concrete, solid and perforated brick, lightweight aggregate concrete and aerated concrete securely. The European Technical Assessment guarantees a secure hold. The fischer termoz CN comprises a grey plug sleeve with attached disc and a compound nail. The termoz CN is set with a hammer. Alongside the small drill hole depth, this saves time and money during installation. The steel point of the compound nail guarantees high holding forces. Thanks to the flat plug disc, a cheap, thin reinforced plaster layer can be applied.

Applications

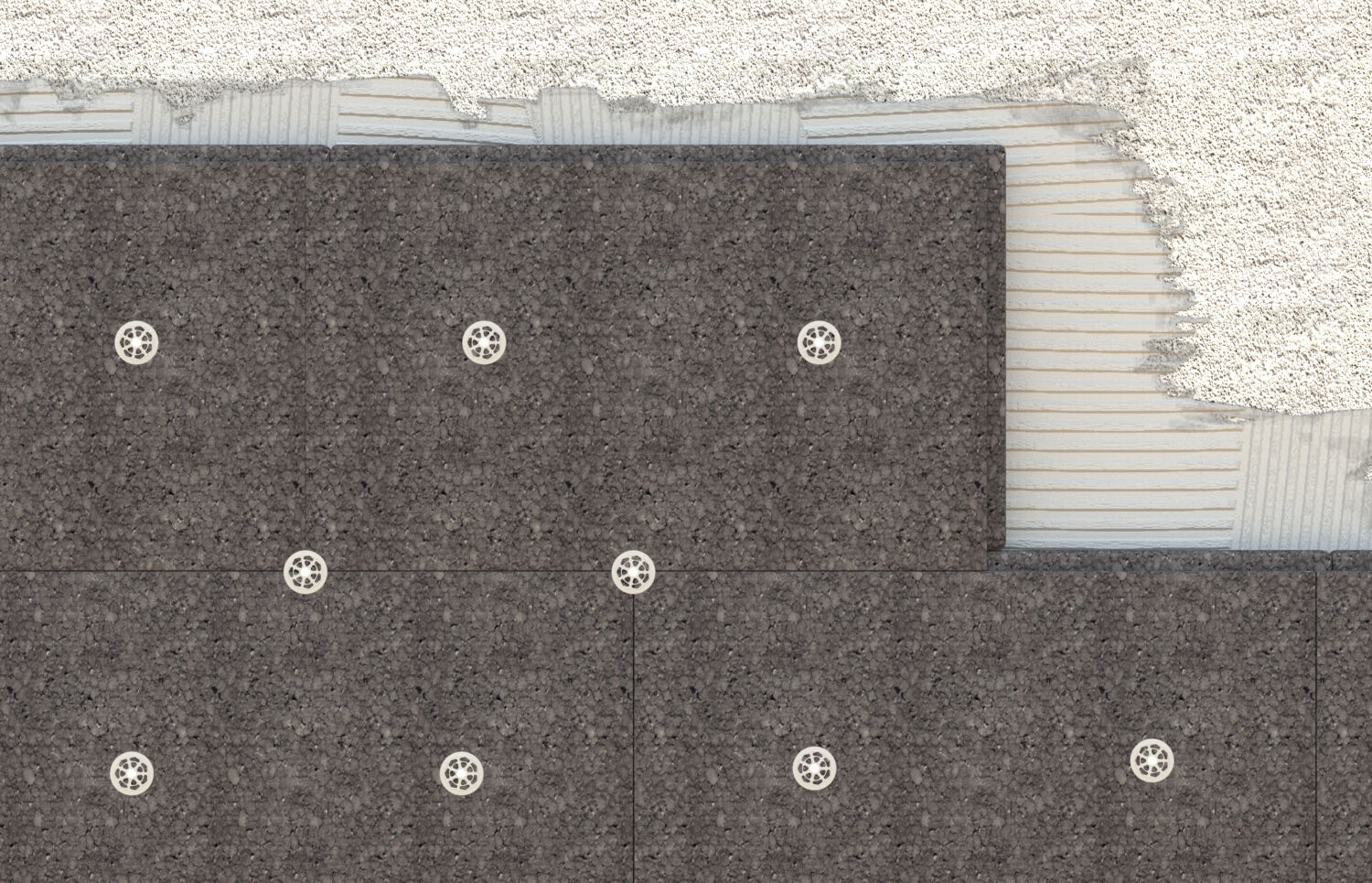

Attachment of ETICS insulating boards on concrete and masonry
Flush-to-surface installation in ETICS insulating materials e.g. polystyrene and mineral wool

Building materials

Building material classes A, B, C, D, E
Concrete
Full blocks made from concrete
Building brick
Solid sand-lime brick
Hollow blocks made from lightweight concrete
Vertically perforated brick
Perforated sand-lime brick
Lightweight aggregate concrete
Aerated concrete

You can find detailed information on building materials in the registration document.

Approvals

ETA-09/0394
DoP No. 0326

ETA Certification Document

pdf, ETA-09/0394

European Technical Assessment for fischer TermoZ CN 8 / fischer TermoZ CN 8 R / fischer TermoZ CNplus 8 - Nailed-in plastic anchor for fixing of external thermal insulation composite systems with rendering in concrete and masonry

Created on 18/10/2022

DOP - Declaration of Performance

pdf, DoP No. 0326

Declaration of Performance for fischer termoz CN 8 / fischer termoz CN 8 R / termoz CNplus 8 R (Plastic anchors for use in concrete and masonry)

Created on 31/10/2022

Load Table

pdf,

Termoz CN 8 - Permissible loads for a single anchor for ﬁxing of external thermal insulation composite systems

ETA-approval
Drill diameter ( d₀ )	8 mm
Anchor length ( l )	250 mm
Effect. anchorage depth ( h_ef )	35 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4048962081053
