fischer Axial Roller Slider heavy FASH2 M12/16

Top Features

Fire test report according to MLAR R30 up to a maximum of R120.
Application as upright or hanging slider.
Sliding path of 140 mm possible.
Compatible with the FUS and FMS channel systems.

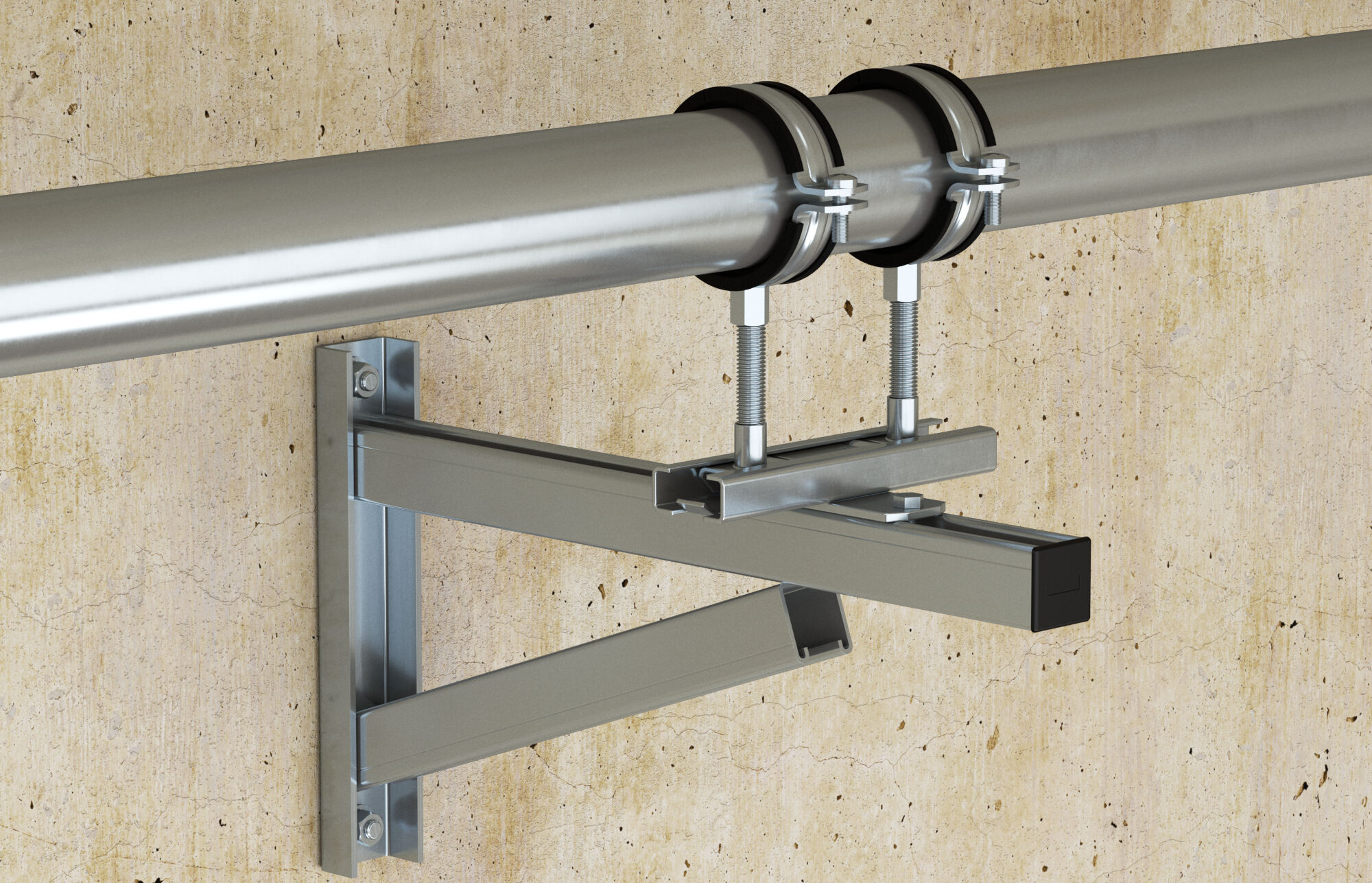

The heavy axial roller slider with single or double mount and combination connection thread

Advantages

The fire test report according to MLAR R30 up to a maximum of R120 guarantees objectively tested safety of function.

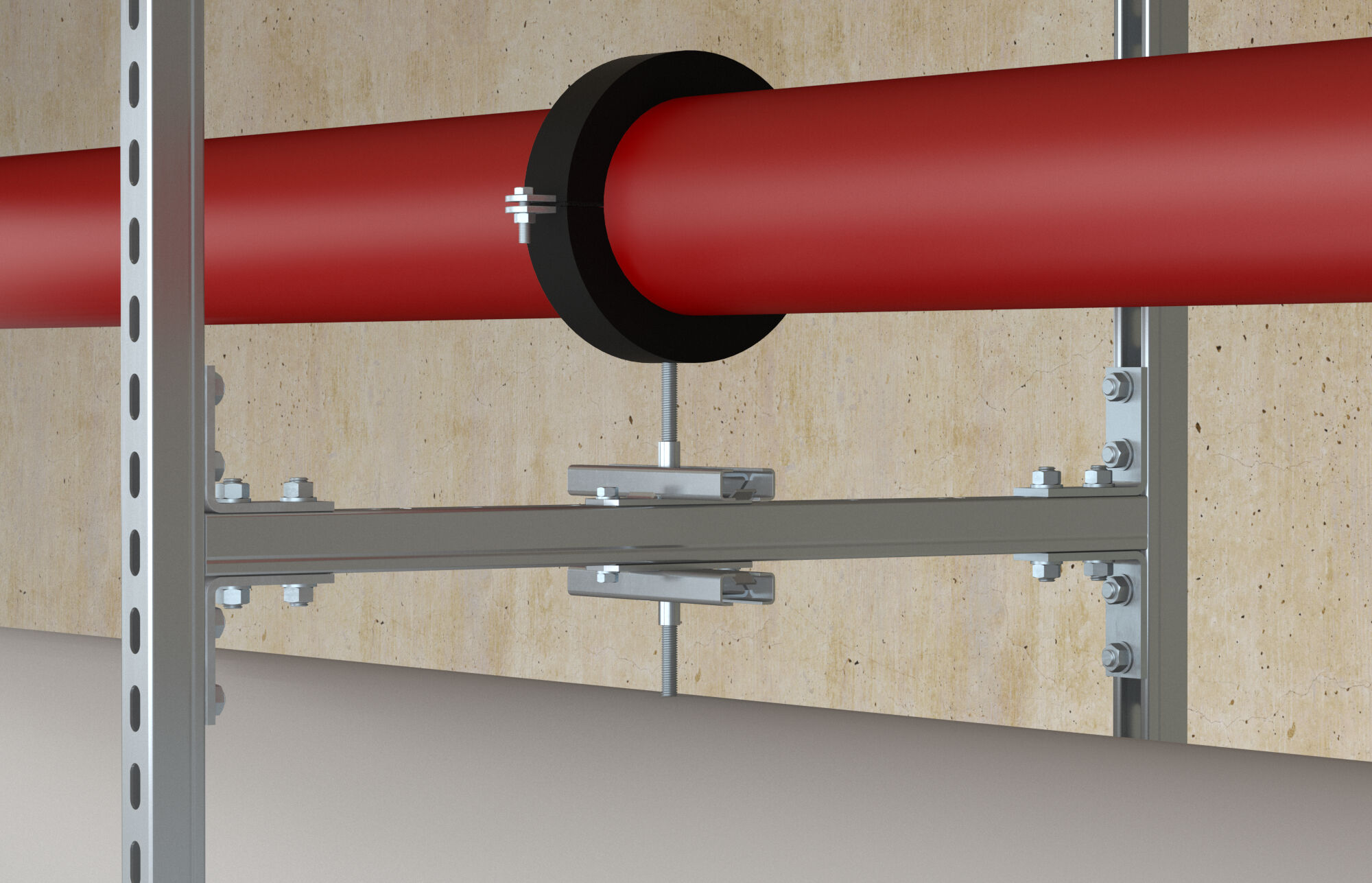

The FASH can be used flexibly, thanks to the application options as a standing or hanging slider and as a guide bearing on vertical pipelines.
The low sliding friction of the two sliding rollers enables optimum force application at the fixed point.
The large sliding path and the two sliding rollers allow large expansions to be accommodated without any problems.
The base plate of the FASH is compatible with the FUS and FMS channel systems and allows fixing with one or two screws.
A cross-slide function of the FASH1 or FASH2 is possible with the FCSM cross slider as well as with the FASH2.

The FASH Axial Roller Slider is used for absorbing pipe expansions and is recommended for heavy pipes up to DN350. The FASM has a maximum sliding range of 140 mm and a maximum load capacity of 10,0 kN. fischer offers the FASH with a metric combination thread M12/M16. The FASL can be used for upright or suspended mounting. The galvanized version is suitable for installations in buildings. The Axial Slider FASH2 guarantees an additional plus in safety thanks to the fire protection certificate.

Properties

Material: Steel
Zinc plating: galvanised steel
Thermal capacity: -30 °C to +130 °C

Thread ( A )	M12 / M16
Length ( L )	270 mm
Width ( B )	180 mm
Height ( H )	63 mm
Thickness ( S )	6 mm
Max. recommended static load (suspended) ( N_rec )	10 kN
Max. recommended static load (upright) ( N_rec )	10 kN
Max. sliding distance	140 mm
Fire test report	Yes
Amount	5 pcs.
GTIN (EAN-Code)	4048962482805
