Seismic pipe clamp with FM approval for fixing and bracing of pipes

Seismic pipe clamp FSSC-FM

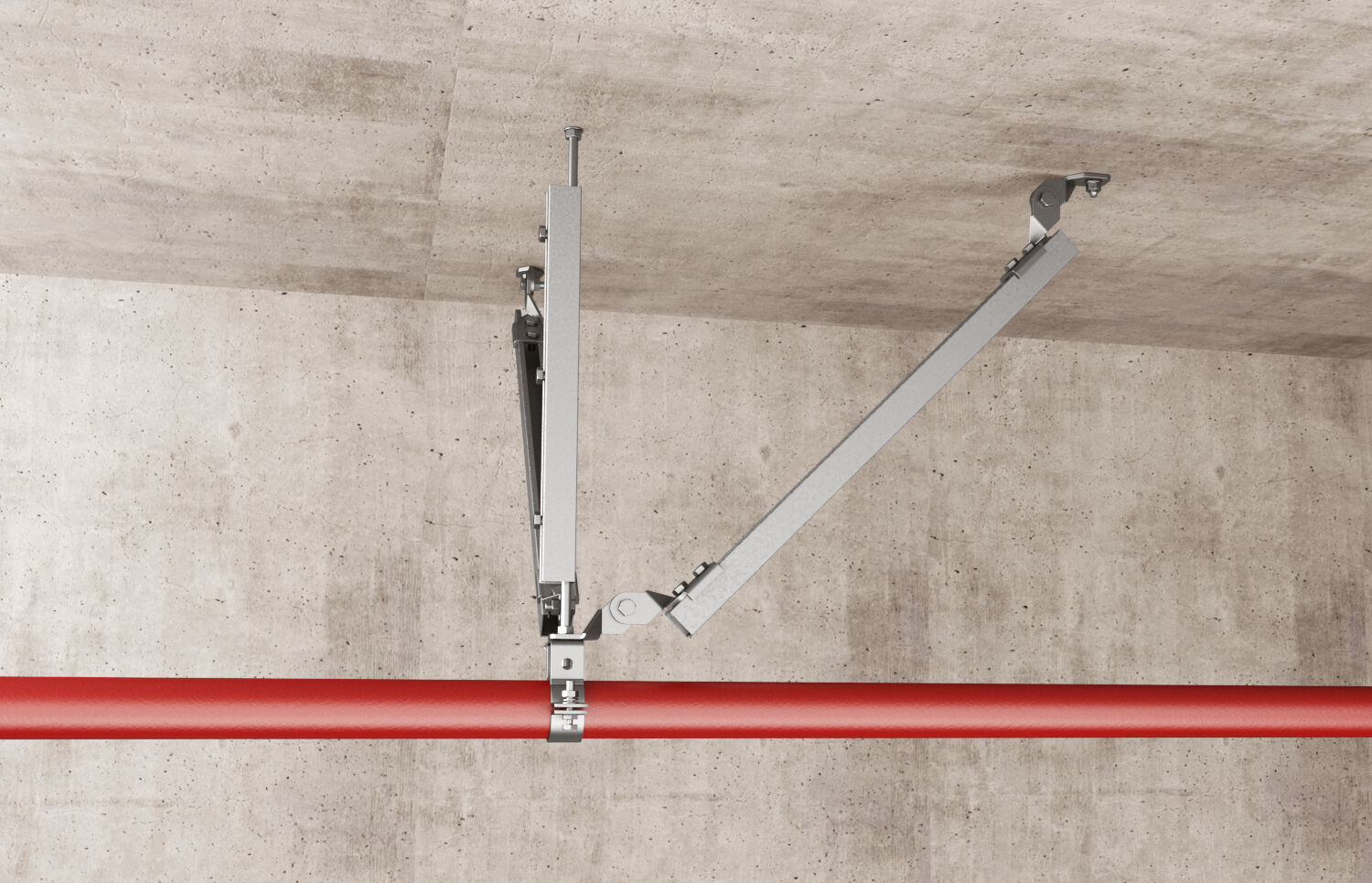

The seismic pipe clamp FSSC-FM allows the secure fixation and bracing of pipeline systems. Both lateral as well as longitudinal forces can be absorbed safely and thus ensure the use in seismic applications.

Variantes de productos

9 Variantes del producto

Clamping range

Width x thickness clamp band

Amount

GTIN (EAN-Code)

Visto 9 de 9 variante (s)

Clamping range ( D )	73 mm
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Amount	24 pcs.
GTIN (EAN-Code)	4048962338317

Clamping range ( D )	76 mm
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Amount	24 pcs.
GTIN (EAN-Code)	4048962338324

Clamping range ( D )	89 mm
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Amount	15 pcs.
GTIN (EAN-Code)	4048962338331

Clamping range ( D )	108 mm
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Amount	15 pcs.
GTIN (EAN-Code)	4048962338348

Clamping range ( D )	114 mm
Width x thickness clamp band ( b x s )	40 x 6 mm
Amount	12 pcs.
GTIN (EAN-Code)	4048962338355

Seismic pipe clamp FSSC-FM

Variantes de productos

Las ventajas / descripción del producto

Solicitud y aprobación

Clamping range ( D )	133 mm
Width x thickness clamp band ( b x s )	40 x 6 mm
Amount	12 pcs.
GTIN (EAN-Code)	4048962338362

Clamping range ( D )	139 mm
Width x thickness clamp band ( b x s )	40 x 6 mm
Amount	12 pcs.
GTIN (EAN-Code)	4048962338379

Clamping range ( D )	159 mm
Width x thickness clamp band ( b x s )	40 x 6 mm
Amount	10 pcs.
GTIN (EAN-Code)	4048962338386

Clamping range ( D )	168 mm
Width x thickness clamp band ( b x s )	40 x 6 mm
Amount	10 pcs.
GTIN (EAN-Code)	4048962338393
