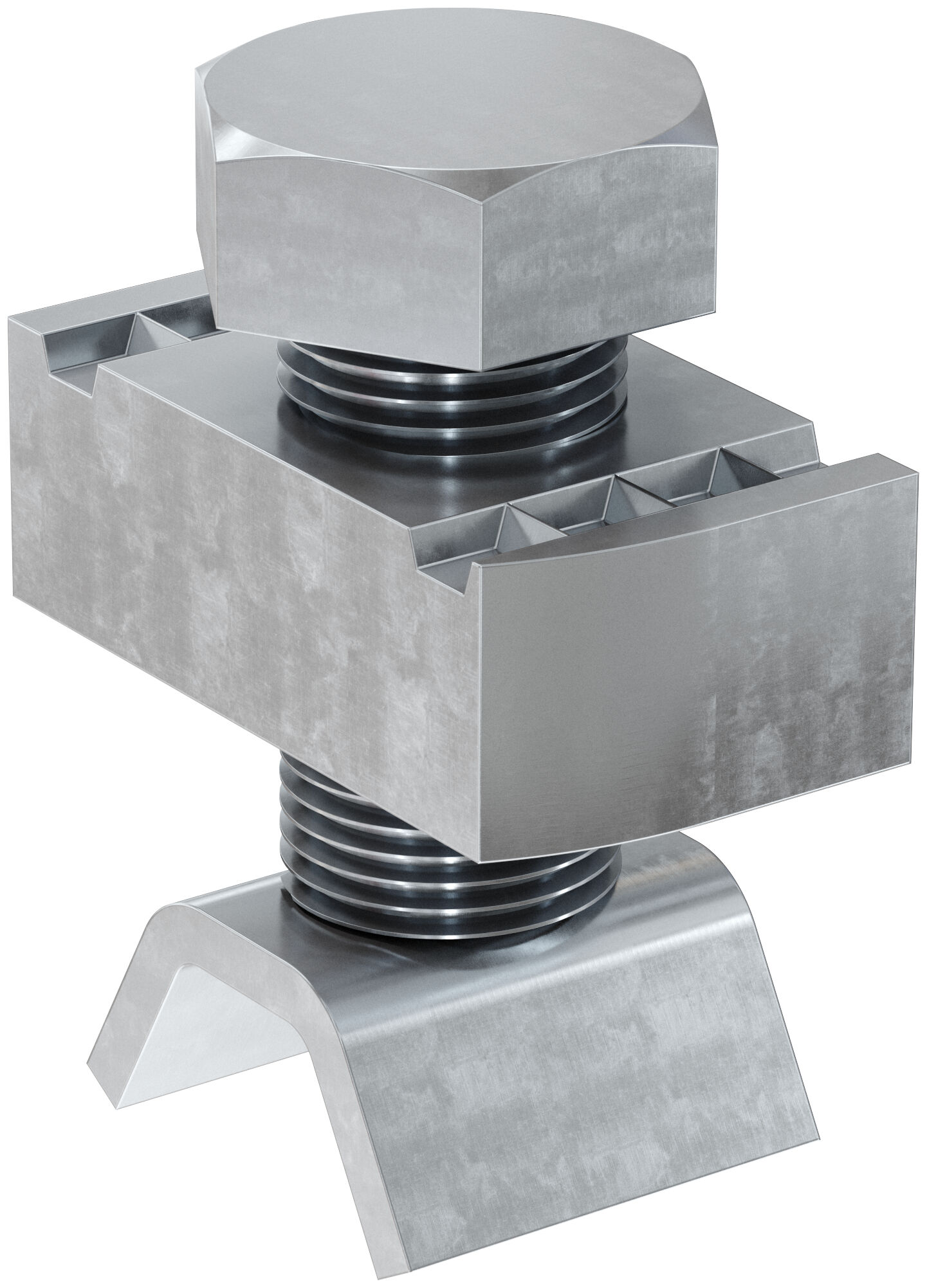

fischer Rod stiffener FTRC M12 gvz

Top Features

The pronounced interlocking of the rod stiffeners gives a secure hold in the channel profile and holds the threaded rod in the desired position.
The exact fit of the rod stiffeners enables quick and easy assembly.
The assembly enables subsequent insertion in already installed channel profiles by 90° rotation.

Rod stiffener FTRC M12 gvz for attaching strut channel to a threaded rod to accomodate compression loads.

Advantages

The pronounced interlocking of the rod stiffeners gives a secure hold in the channel profile and holds the threaded rod in the desired position.
The exact fit of the rod stiffeners enables quick and easy assembly.
The assembly enables subsequent insertion in already installed channel profiles by 90° rotation.

The rod stiffener FTRC M12 is used to brace suspended constructions by bracing threaded rods M10 or M12 in channel profiles. The pronounced interlocking holds the rod stiffener in the desired position and ensures a secure hold in the channel. The exact fit enables quick and easy channel assembly. It is possible to insert the rod stiffeners in the already existing constructions at any time via assembly by 90° rotation.

Properties

Material: steel S235JR (material no. 1.0038) acc. to DIN EN 10025-2
Zinc plating: electro zinc-plated

Thread ( M )	M12
Thickness ( S )	12 mm
Width across nut	19 mm
Installation torque ( T_inst )	20 Nm
Amount	50 pcs.
GTIN (EAN-Code)	4048962338577
