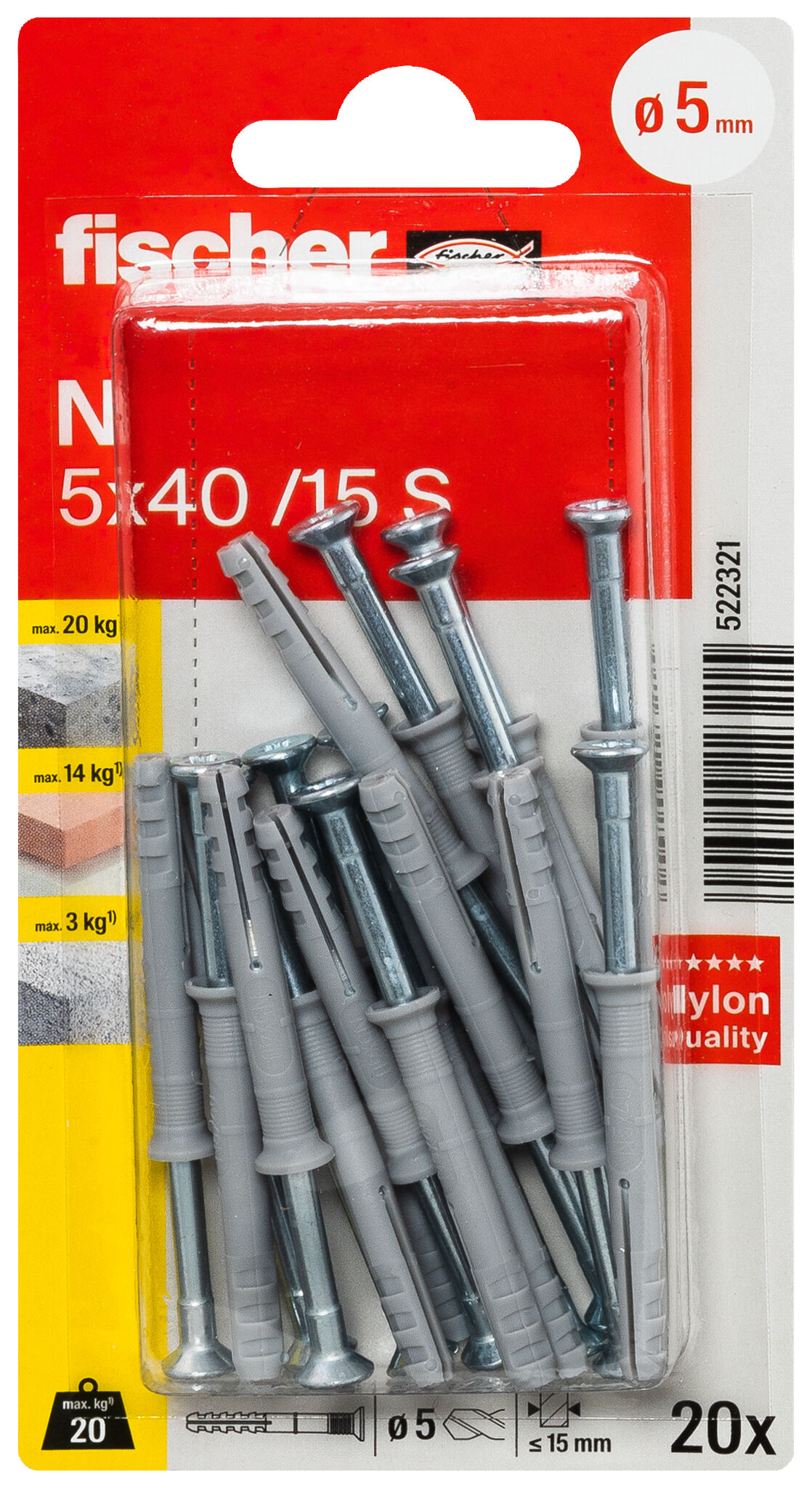

fischer Hammerfix N 5 x 40 S K NV with countersunk head gvz SB-card

Top Features

Fast Hammerset installation saves time: ideal for series installation.
Subsequent dismantling of the nail screw with a cross-slot recess is possible.
With countersunk head.
Simple and secure installation: Integrated hammer-in stop prevents premature anchor spreading.

The ha mmer-in plug for a simple, fast and economical installation

Advantages

The rapid hammerset installation reduces the amount of time required and allows for an economic series installation.
The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation.
Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling.
The wide range of diameters and usage lengths provides the correct plug for every fixing.

The fischer Hammerfix N-S with countersunk head consists of a high-quality nylon plug and a zinc-plated nail screw. These are already pre-fitted for quick assembly. The Hammerfix is led through the component in the time-saving through-type installation. When driving in the nail screw, the fixing sleeve expands and anchors itself securely in the building material. The fischer Hammerfix N-S with countersunk head is ideal for fixing timber constructions in all building materials in internal areas.

Functionality

Suitable for push-through installation.
When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material.
Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes.

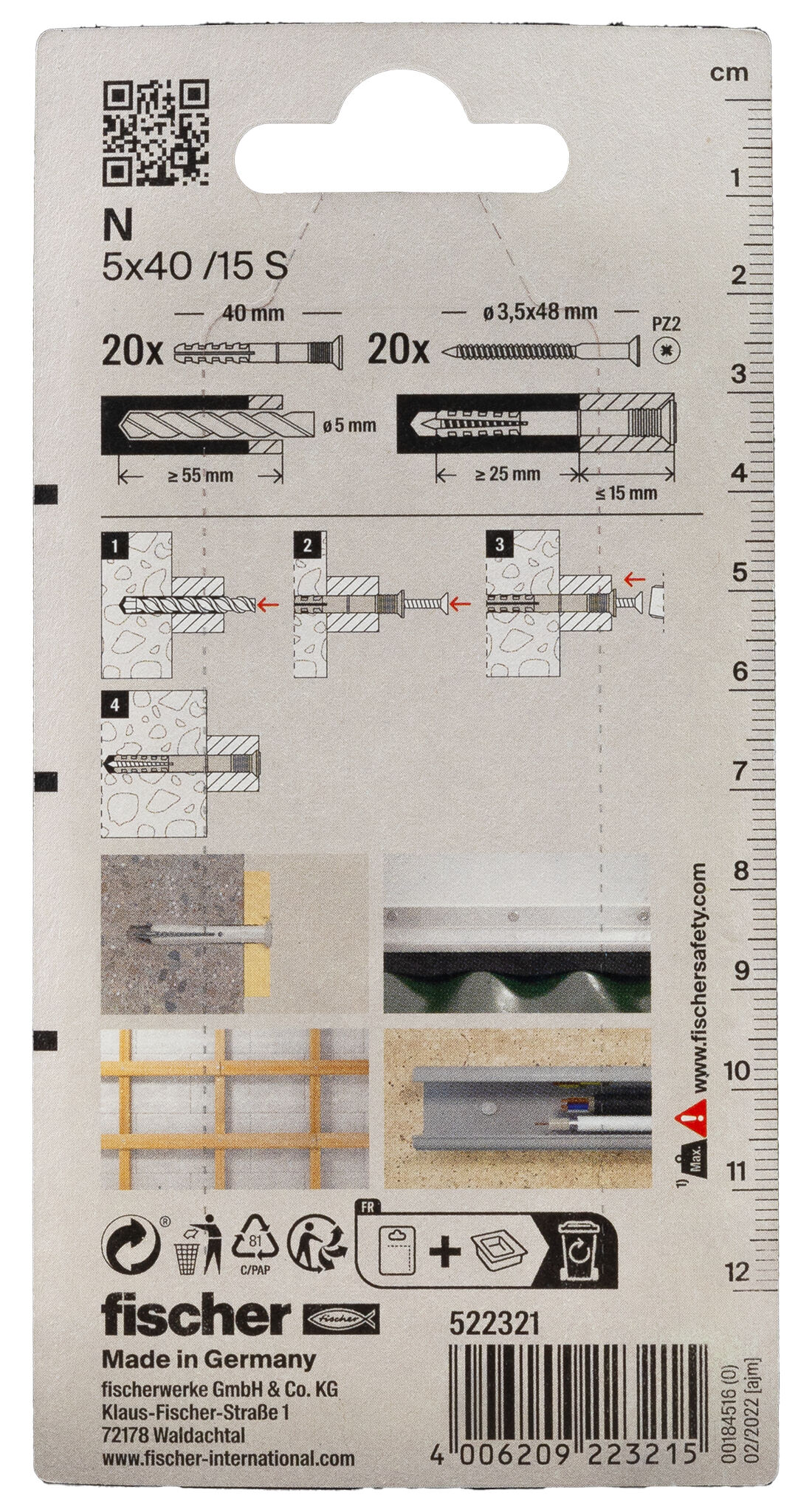

Mounting Strip 1 Picture

1 / 4

Drill diameter ( d₀ )	5 mm
Effect. anchorage depth ( h_ef )	25 mm
Anchor length ( l )	40 mm
Min. drill hole depth for through fixings ( h₂ )	55 mm
Max. fixture thickness ( t _fix )	15 mm
Packaging	Blister card
Amount	1 pcs.
GTIN (EAN-Code)	4006209223215
