Art.-No. 562190

GTIN (EAN-Code): 4048962440515

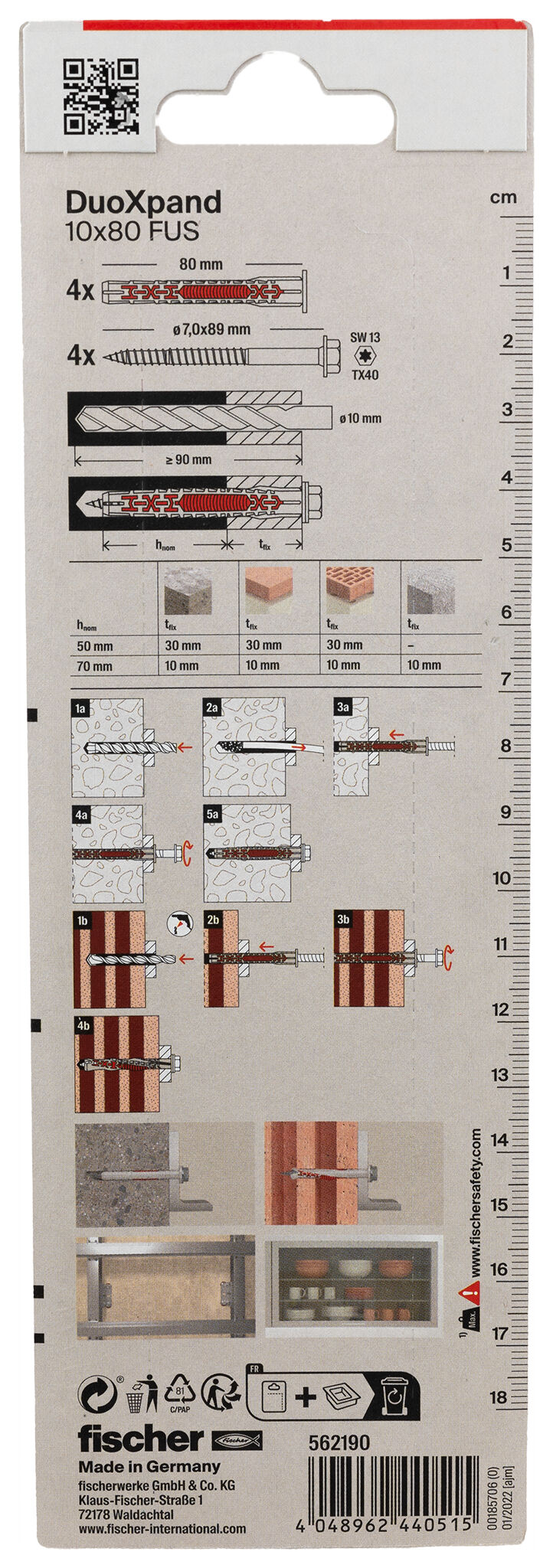

fischer Frame fixing DuoXpand 10 x 80 FUS zinc-plated steel

Top Features

Clever combination of design and material for a secure installation in the building material.
Expansion element with two anchoring depths for flexible use.
Approved multiple fastening of non-load-bearing systems in concrete and masonry.
Side ribs prevent rotation in the drill hole for convenient installation.
Pre-assembled safety screw with hexagonal head and preformed washer.

Anchor with a smart bite

Advantages

The combination of design and material adapts to all building materials and enables universal use.
The special lamella geometry expands gently in the respective building material. This avoids fractures in porous building materials and enables anchoring close to the edge.
The grey main body made of high-quality nylon provides the strength, while the red material component ensures flexibility and optimal spreading.
The European Technical Assessment (ETA-21/0324) for multiple use for non-structural applications ensures secure hold in all building material classes.
DuoXpand 10 with lengths 80, 100, 180 and 200 mm is suitable for anchoring under seismic influence in hollow brick masonry (ETA-22/0186).
The pre-mounted safety screw is perfectly matched to the plug and ensures time savings during installation.

The fischer frame fixing DuoXpand with two anchoring depths is approved with the fischer hexagonal safety screw for multiple fixings of non-load-bearing systems in concrete, masonry and aerated concrete. Thanks to its special geometry and the material combination, the anchor expands optimally in the respective building material. The range includes diameters 8 and 10 and anchor lengths up to 230 mm. The DuoXpand with the hexagon head screw and moulded-on washer is particularly suitable for fixing metal to concrete or masonry.

Applications

Facade, ceiling and roof substructures made of wood and metal
Windows
Gates and doors
Wardrobes
Kitchen hanging cabinets
Squared timbers
Beams
TV consoles
Wall covering
Metal brackets
Metal supports
Cable ducts
Cable trays

Building materials

Approved for:

Concrete ≥ C12/15
Solid brick
Solid sand-lime brick
Solid block made from lightweight and normal weigth concrete
Vertically perforated bricks
Perforated sand-lime brick
Hollow blocks made from lightweight concrete
Aerated concrete

Also suitable for:

Natural stone with dense structure
Solid panel mad from gypsum

You can find detailed information on building materials in the registration document.

Approvals

ETA-21/0324
ETA-22/0186
DoP No. 0347
REPORT NO.: 21-010-3 (1)

Functionality

The DuoXpand is suitable for push-through installation.
In solid building materials, the product design guarantees equal load distribution into the substrate.
In perforated brickwork, the lamellas expand at the stone web and form an undercut in the cavity. The anchor geometry ensures that the force is transferred evenly to the material, so that porous stone webs are not destroyed.
Particularly suitable for fixing metal to concrete or masonry.

Mounting Strip 1 Picture

1 / 5

pdf, ETA-21/0324

European Technical Assessment for fischer DuoXpand - Plastic anchors for redundant non-structural systems in concrete and masonry

Created on 19/10/2023

pdf, ETA-22/0186

European Technical Assessment for fischer DuoXpand 10: seismic action

Created on 21/02/2024

pdf, DoP No. 0347

Declaration of Performance for fischer frame fixing DuoXpand (Plastic anchors for use in concrete and masonry)

Created on 02/11/2023

pdf, REPORT NO.: 21-010-3 (1)

fischer frame fixing anchor DuoXpand 10 under fire exposure

Valid from 19/04/2022
to 19/04/2027

Frame fixing DuoXpand - Permissible loads of a single anchor as part of a multiple fixing of non-structural systems.

DuoXpand. Anchor with a smart bite.

DuoLine.

Frame fixings. The full range for all applications.

ETA-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	90 mm
Usable length at anchorage depth 50 mm ( t_fix )	30 mm
Usable length at anchorage depth 70 mm ( t_fix )	10 mm
Anchor length ( l )	80 mm
Drive	TX40 / SW 13
Contents	4 x DuoXpand 10 x 80, 4 x hexagon head screw 7.0 x 89 mm with moulded washer
Packaging	Blister card
Amount	4 pcs.
GTIN (EAN-Code)	4048962440515
