Flexible fire resistant acrylic spray

FireBarrier ElastoSeal Plus FFB-ES Plus

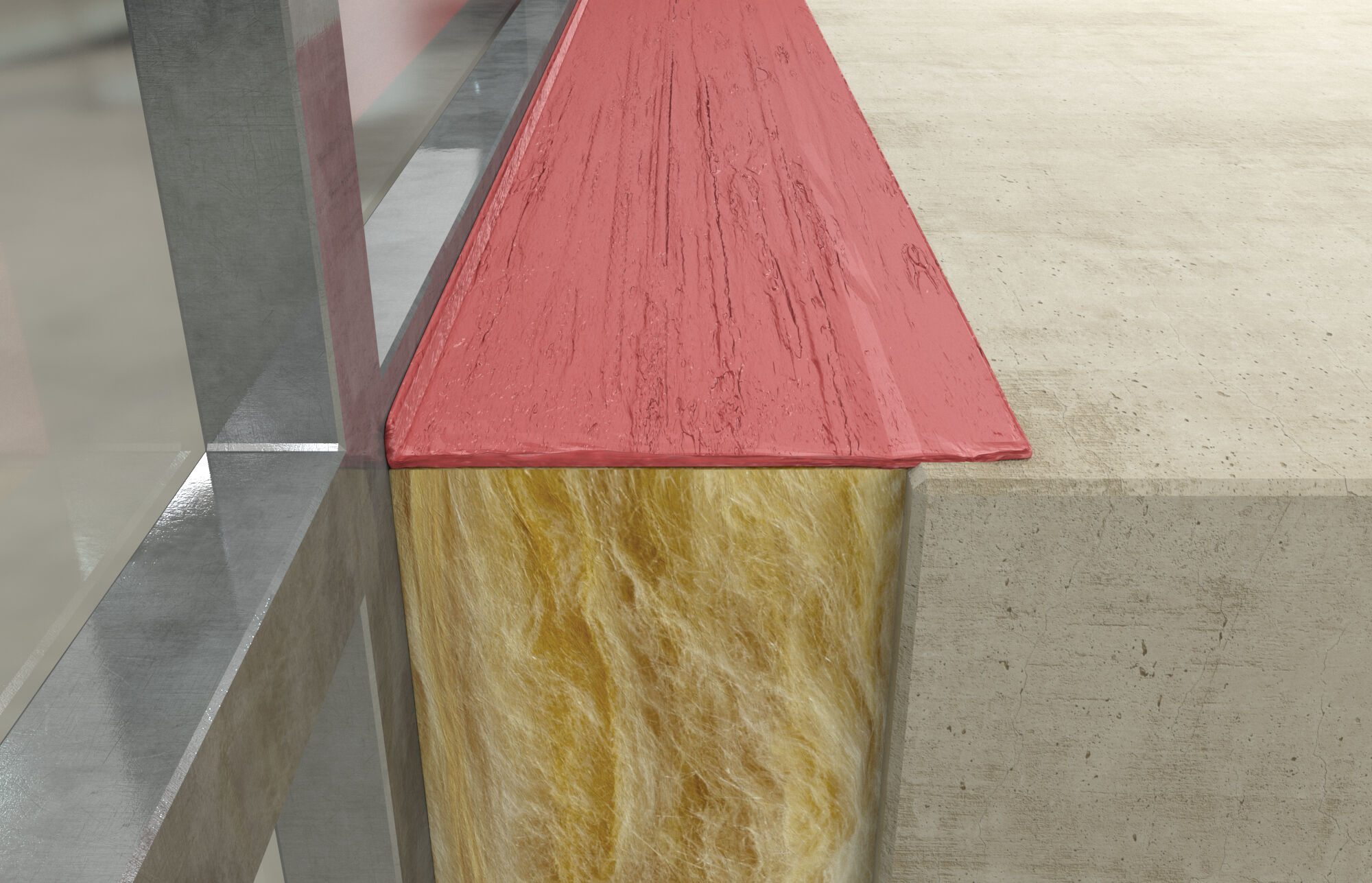

fischer FFB-ES Plus is a one part water-based acrylic spray which has been designed to provide smoke and fire protection on horizontal construction joints, vertical penetrations and perimeter joints. Tested in accordance with EN 1366-3, EN 1366-4, EN 1364-4, ASTM E1966 (UL 2079) the FFB-ES Plus is certified by ETA, UL-EU and UL-US. It has excellent movement capabilities and applied together with stone wool backing it provides up to 4 hours fire rating.

Varianty produktov

Schválenia / Protokoly o vykonaní kontroly

2 Variant (varianty) produktu

Contents

Colour

Airborne sound insulation (ISO 10140-2)

Sound Transmission Class STC (ASTM E90)

Packaging

Amount

Vysvetlivky = Schválenie je k dispozícii— = Schválenie nie je k dispozícii

Prezerané 2 z 2 variantov

Applications

Horizontal linear joint seal
Perimeter joints
Cable trays
Inside application

Building materials

Rigid floor and wall constructions
Masonry
Concrete
Aerated concrete

Podrobné informácie o stavebných materiáloch nájdete v schválení. Ďalšie dokumenty nájdete v časti https://www.fischer.de/sdb.

Schválenia

ETA-23/0164
ETA-23/0166
DoP No. FS-1018
DoP No. FS-1019
UL-EU-01276-EN
EPD-DBC-FIW-20230413-IBF1-EN

ETA Certification Document

pdf, ETA-23/0164

European Technical Assessment for fischer FFB-ES Plus - Fire Stopping, Fire Sealing & Fire Protective Products, Fire Retardant Products, Penetration Seals.

Vytvorené dňa 28/11/2023

ETA Certification Document

pdf, ETA-23/0166

European Technical Assessment for fischer FFB-ES Plus - Fire Stopping, Fire Sealing & Fire Protective Products, Fire Retardant Products, Linear Joint and Gap Seals.

Vytvorené dňa 28/11/2023

DOP - Declaration of Performance

pdf, DoP No. FS-1018

Declaration of Performance for fischer FFB-ES Plus ElastoSeal (Fire stopping and fire sealing products: Penetration Seals)

Vytvorené dňa 05/12/2023

DOP - Declaration of Performance

pdf, DoP No. FS-1019

Declaration of Performance for fischer FFB-ES Plus ElastoSeal (Fire stopping and fire sealing products: Linear Joint and Gap Seals)

Vytvorené dňa 05/12/2023

Certificate

pdf, UL-EU-01276-EN

UL-Zertifikat

Platí od 28/09/2023
do 27/09/2033

EPD - Environmental Product Declaration

pdf, EPD-DBC-FIW-20230413-IBF1-EN

Environmental Product Declaration for fischer FFB-ES Plus

Platí od 20/11/2023
do 07/06/2027

Safety Data Sheet

pdf,

Safety data sheet for 569303 FFB-ES Plus WHITE

Safety Data Sheet

pdf,

Safety data sheet for 569304 FFB-ES Plus RED

Technical Data Sheet

pdf,

FFB-ES Plus

ETA-approval
Contents	19 l
Colour	white
Airborne sound insulation (ISO 10140-2)	Rw (C, Ctr) = 44 (-4, 9) dB
Sound Transmission Class STC (ASTM E90)	STC 62
Packaging	Bucket
Amount	1 pcs.
GTIN (EAN-Code)	4048962494877

ETA-approval
Contents	19 l
Colour	red
Airborne sound insulation (ISO 10140-2)	Rw (C, Ctr) = 44 (-4, 9) dB
Sound Transmission Class STC (ASTM E90)	STC 62
Packaging	Bucket
Amount	1 pcs.
GTIN (EAN-Code)	4048962494884

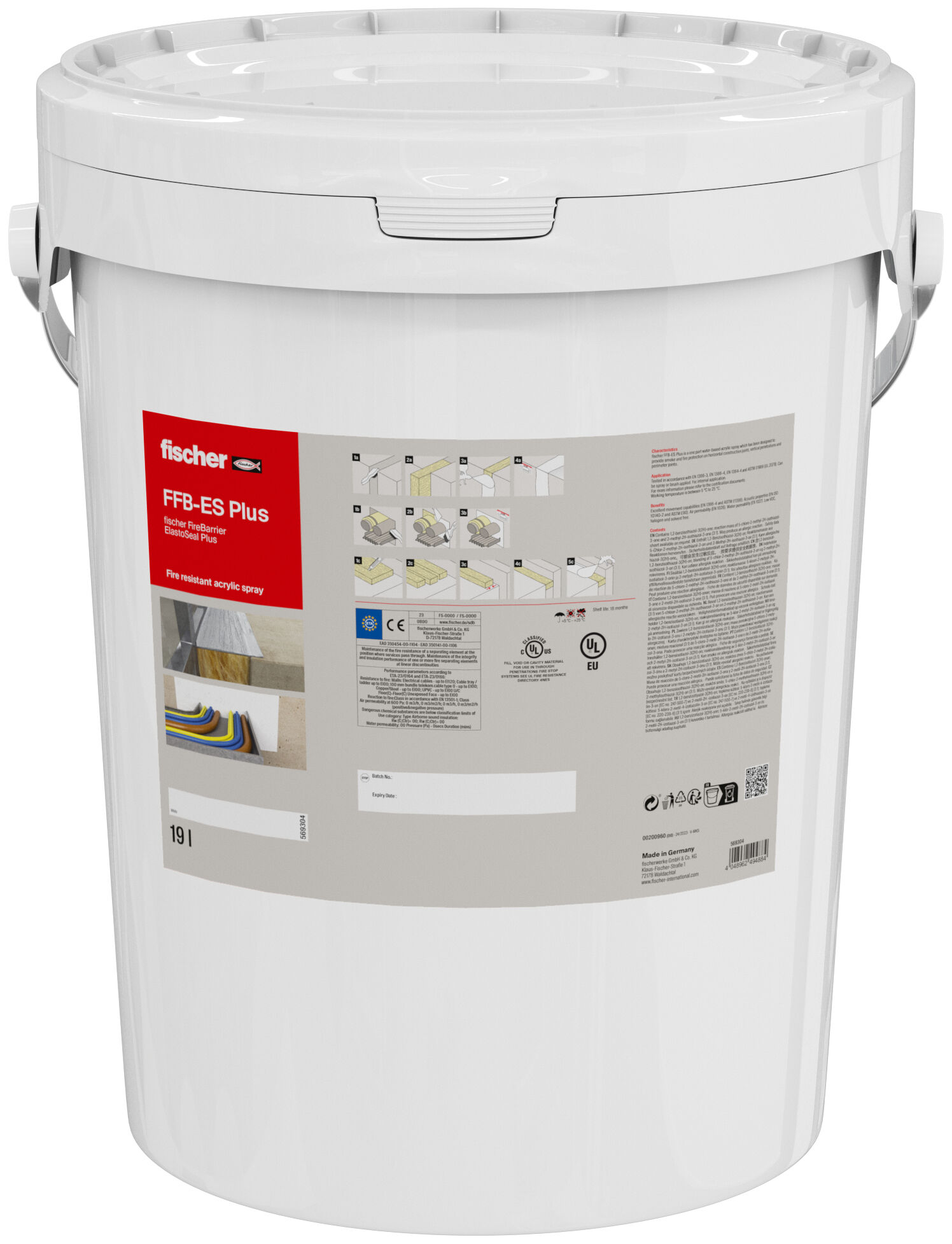

FireBarrier ElastoSeal Plus FFB-ES Plus
