The geometry of the anchor requires only a small drill hole diameter, allowing for a discreet and visually attractive fixing solution.
There is no need to drill through the glass façade panel to install the anchor. This adds more safety. The fastening point remains inside the façade panels and does not penetrate through to the outside. This reduces the danger of contamination and ensures a good seal.
Create an undercut drill hole and chamfer the edge of the drill hole in one work step.
Anwendung und Zulassung
Applications

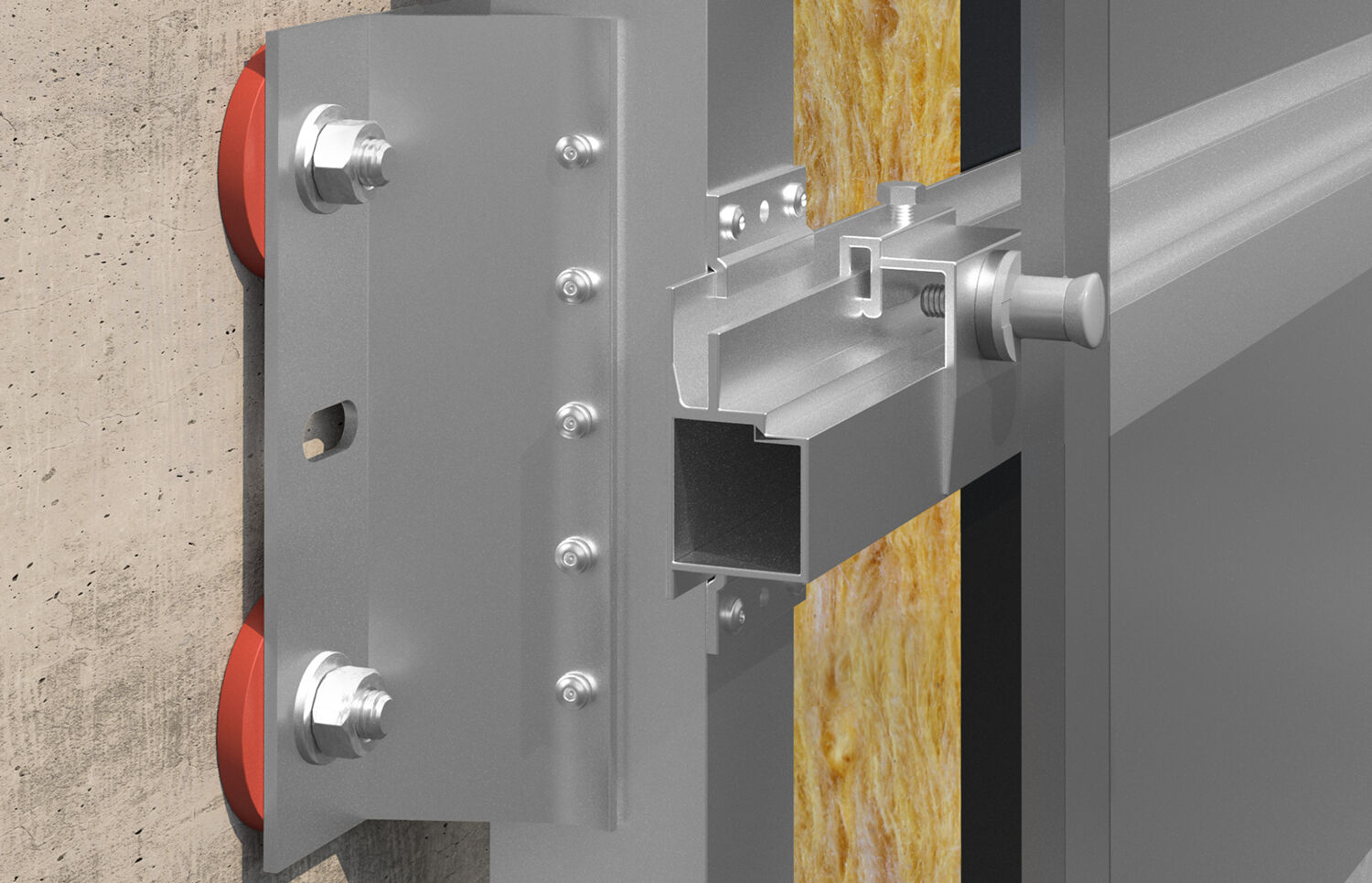

Exterior façades
Interior façades
Glass façades
Building materials
Laminated composite safety glass (>18mm)
Es gelten die Details (Baustoffe, Lasten, etc.) der ggf. verfügbaren Zulassung. Weitere Dokumente finden Sie im Download Center.
Montageanleitung
Functionality
Before glass hardening: use wet diamond drilling - first cylindrical, then conical - to drill an undercut hole.
After drilling the glass, the glass must be hardened before the undercut anchors can be set.
When the undercut anchor is set, an optimal, positive-locking connection is created between the expanding part and the drill hole.
