The user-friendly clip fixing for cable ducts and cable clasps.

ClipFix plus SD

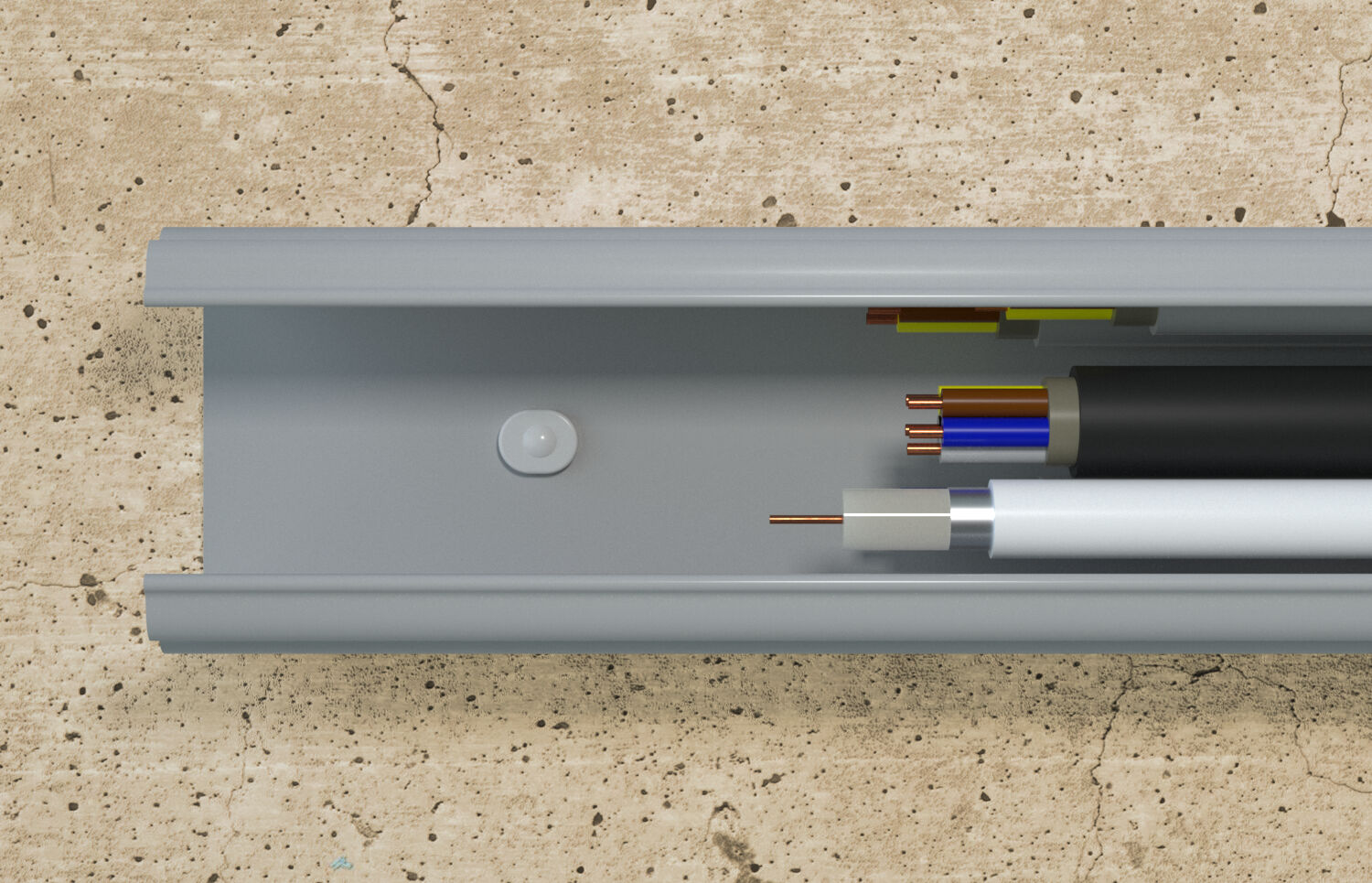

The fischer ClipFix plus SD is an easy-to-mount solution for fixing cable ducts, cable clasps and cable harnesses. The clip fixing is made from high-quality nylon and combines a plug with screw in one component, thus reducing mounting time. The innovative electrical fixing is inserted into the drill hole without a screw and securely fixes loads of up to 11 kg in concrete and solid brick. The ClipFix plus SD can also withstand extreme temperature loads of -20°C to +80°C.

Product variants

2 Varianti del prodotto

Min. drill hole depth

Usable length

Packaging

Amount

GTIN (EAN-Code)

Visualizzate 2 di 2 varianti

Advantages

The ClipFix plus SD combines anchor and screw. This saves on materials and makes it easier to affix cable ducts that are difficult to access without the need for additional tools.
The simple clip fixing reduces installation time.
The extended shank of the FS plus SD 40 allows bridging of non-bearing plaster layers, as well as the fixing of thicker attachments.
The long-lasting nylon material is flame resistant, halogen- and silicone-free. It can be used all year round, including during a frost. This ensures a high level of safety.

Functionality

To fix, manually place the ClipFix plus SD directly into the drill hole. No additional screws are needed.
The clamping force of the locking catch allows the ClipFix to hold itself in the drill hole.
Recommended loads (required safety factor considered): clip fixing SD up to 11 kg.
Temperature resistance once installed from -20 °C to +80 °C.
Flammability material UL 94-V0.

Mounting Strip 1 Picture

1 / 5

1
2
3
4
5

Min. drill hole depth ( h₁ )	35 mm
Usable length ( t_fix )	4 mm
Packaging	Folding box
Amount	200 pcs.
GTIN (EAN-Code)	4006209581780

Min. drill hole depth ( h₁ )	35 mm
Usable length ( t_fix )	15 mm
Packaging	Folding box
Amount	100 pcs.
GTIN (EAN-Code)	4006209581797
